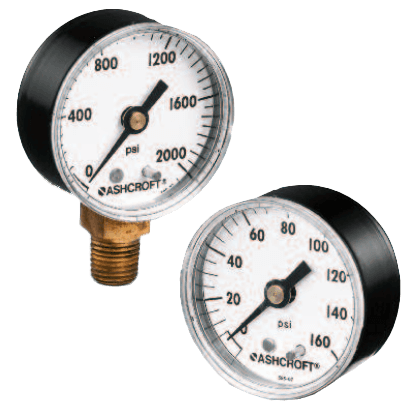

1005 Commercial Pressure Gauge
Brand: Ashcroft Inc.
Ashcroft Type 1005 pressure gauges share the uncompromising reputation for quality and product integrity that is inherent in all Ashcroft instruments.
The core of the Type 1005 gauge is the patented PowerFlex movement. This movement has been thoroughly tested and proven to be more resistant to shock, vibration, and pulsation than conventional movements, thus assuring a more accurate, dependable, long-lasting gauge.
The essence of Ashcroft Type 1005 gauges is attractive styling, a technically superior design, durable construction, economy, and the excellent reputation of Ashcroft gauges for delivery and service.
True Zero indication, a unique safety feature standard on these gauges, is the accurate indication of zero pressure being applied to the gauge. In addition to the increased safety benefits, this means reduced inspection and manufacturing costs for you and your customer.
Features- Case material is black-painted steel
- These gauges have a heat-resistant push-in polycarbonate window
- Dial faces match other Ashcroft commercial gauges for easy readability
- Patented PowerFlex movement with polyester segment
- True Zero indication, a unique safety feature
Specifications
Brand
Accuracy
- ± 3-2-3% ASME B40.100, Grade B
Applications
- Automotive Diagnostic Equipment
- Beverage Dispensing Systems
- Filter Regulators & Water Pumps
- Hydraulics & Pneumatics
- Instrument & Controls
- Machinery Industry
- Medical Equipment
- OEM Equipment
- Paint Sprayers
- Pool & Spa Filters
- Pumps & Compressors
- Sheet: Fluid Power Equipment
Approvals & Certifications
- ISO 9001
- 252A [Compressed Gas Regulator Accessories (2", 30-300 psi)]
- UL 404 [High Pressure Gas (2", 1,000-4,000 psi)]
Enclosure, Body Material
- Steel
Lens
- Glass Lens
- Polycarbonate Lens
Materials of Construction
- Helical (2" to 3-1/2" 1,000-6,000 psi)
- Bourdon Tube: C-Shape Bronze (2" to 3-1/2" Vacuum-600 psi & Compound, 1-1/2" Vacuum-1,000 psi)
- Dial (Black Figures on White Background), Pointer (Black): Aluminum
- PowerFlex Movement with Polyester Segment
- Socket: Brass
- Socket: Nickel-Plated, Teflon Taped Top or Side Connection
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Orifice Size
- Restrictor: 0.013" (0.33 mm) Throttle Plug in Gauges 1,000 psi & above
Pressure Range
- bar: 0 to 413.7
- kPa: 0 to 41,370
- psi: 0 to 6,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Size
- 1-1/2" (40 mm)
- 2" (50 mm)
- 2-1/2" (63 mm)
- 3-1/2" (90 mm)
