Emerson Appleton Cable Gland, E1FU
Images are representations only.

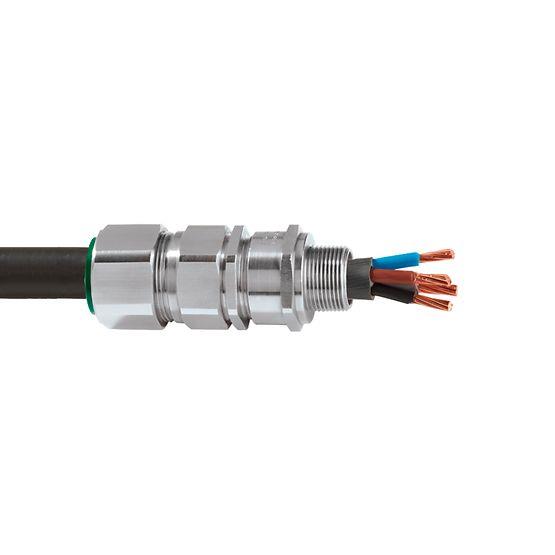

Appleton™ E1FU Triple Certified Cable Glands

Brand: Appleton

Appleton™ E1FU Triple Certified Cable Glands provide a gas tight seal permitting the compatibility of use with restricted breathing (Type "nR") equipment. They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per §10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. The E1FU Series is ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Features
  • Provides a flameproof (Type "d") seal on the cable inner bedding.

  • Provides a gas tight seal permitting the compatibility of use with restricted breathing (Type "nR") equipment.

  • Allows mechanical cable retention and earth continuity via the cable armor termination.

  • The inner displacement seal and armor terminations are separate tightening actions providing maximum control over the pressure applied to the cable bedding.

  • Reversible armor cone and AnyWay clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment.

  • Environmental/load retention seal is provided on the cable outer sheath.

  • Stepped cone is suitable for SWA cables.

  • Grooved cone is suitable for all other approved armored cables.

    • Specifications

    Brand

    Approvals & Certifications

    • Ex D IIC, Ex E II, Ex NR II, Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66

    Cable Gland Accessories

    • Shroud, Locknut, Earth Tag, Entry Thread Seal, Serrated Washers, Adaptors & Reducers

    Gland Material

    • Nickel-Plated Brass

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D

    Optional Material

    • Lead Sheath Version (replace Digit E1 with E2, Aluminum (replace Last Digit 5 with 1)

    Seal Material

    • LSF (Low Smoke Fume) ThermoPlastic Elastomer. Inner CDS System & LRS (Load Retention Seal) Outer Seal
