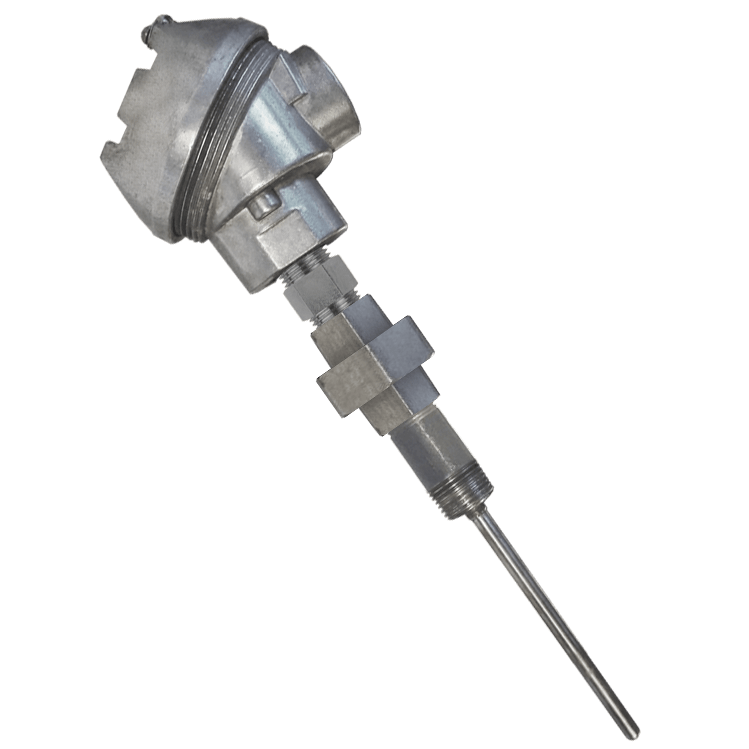

Style 48 Terminal Head Style RTD Temperature Sensor
Brand: United Electric Controls Ltd.
Designed for use in any pipe or surface temperature measuring application.
Features- NEMA 4 or 4X and Explosion-proof Terminal Head Option
- Heat transfer pad with excellent temperature response
- Rugged stainless steel sheaths for excellent mechanical protection

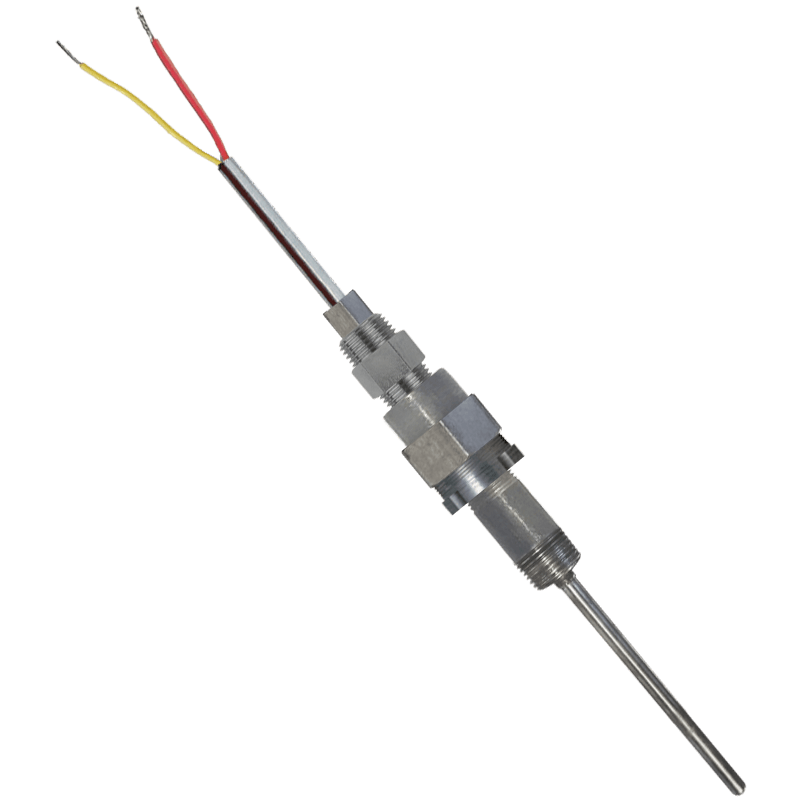

- Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
- Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles
Specifications
Accuracy
- ± 0.01%
- ± 0.06%
- ± 0.12%
Approvals & Certifications
- ATEX EEx D IIC
- CSA Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
- FM Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
- UL Class I, Division 1, Groups C, D, Class II, Groups E, F, G
Approvals & Certifications
- Certificate of Conformance
Communication
- HART
Conduit Connection
- 1/2" NPT
- 3/4" NPT
Connection Material
- Union & Lower Nipple: Carbon Steel
- Union & Lower Nipple: Stainless Steel
- Union: Electro-Plated Steel
Diameter
- Sheath: 0.125" to 0.375" (3.17 to 9.52 mm)
Electrical Connectors
- #6 & #10 Spade Terminal, Copper-Plated
- #8 & #10 Ring Terminal
- 1/4" Push-On Insulated Terminal, Copper-Plated
- Cable Gland
- Terminal Block
Environmental Protection
- IP66
- IP67
- IP68
- NEMA 4
- NEMA 4X
- Terminal Head: Explosion-proof
Gasket Material
- O-Ring Gasket: Silicone Rubber
Input
- 4-20 mA, 2-Wire Transmitter
Length
- Connection Length: 2.5" (63.5 mm) - NU, NUS & NUX Connection
- Connection Length: 3" to 9" (76.2 to 228.6 mm) - NUN Connection
- Sheath Length: 36" (914.4 mm), Maximum
Materials of Construction
- Sheath & Terminal Head: 316 Stainless Steel
- Terminal Head: Cast Iron
- Terminal Head: Cast or Epoxy Coated Aluminum
- Terminal Head: Nylon
- Terminal Head: Polypropylene (White/Black)
NACE & NIST
- NIST Traceable Calibration
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Male
Operating Temperature - Sensor
- -200° to 788° C (-328° to 1,450° F)
Output
- 4-20 mA, 2-Wire Transmitter, Isolated or Non-Isolated Output
RTD Type
- Pt100
Sensor, Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor, Probe Material
- Platinum
Sensor, Probe Type
- RTD
