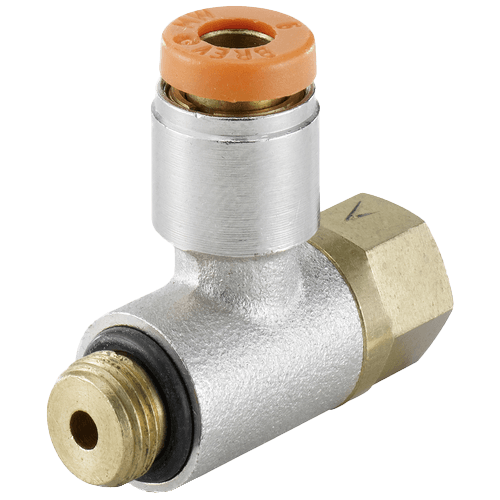

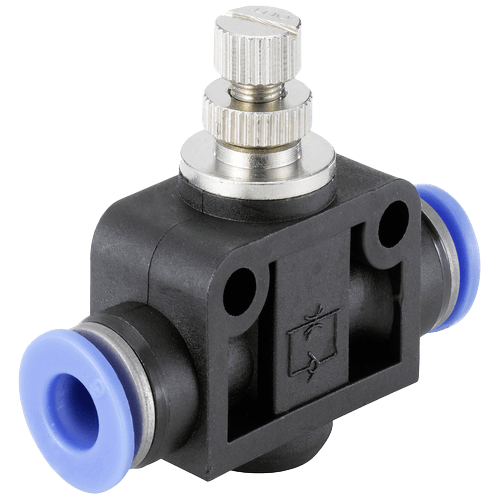

TRG001 Flow Regulator
Brand: Burkert Fluid Control Systems
Specifications
- M 5 to G 1/2” threaded connection
- 0.15" to 0.47" (4 to 12 mm) push-in connector
- Brass nickel-plated, stainless steel, Aluminum, plastic PBTP
Specifications
BSP Connection
- G 1/2"
- G 1/4"
- G 1/8"
- G 3/8"
Enclosure, Body Material
- AISI 316 Stainless Steel
- Aluminum
- Brass Nickel-Plated
- Plastic PBTP
Media
- Air
- Fluids - Plastic PBTP, Aluminum
- Neutral Gasses
Metric Connection
- M5
Nominal Pressure
- psi: 145 (kPa: 1,000, bar: 10) - Brass Nickel-Plated, Plastic PBTP, Aluminum
O-Ring Material
- FKM - AISI 316 Stainless Steel
- NBR - Brass Nickel-Plated, Plastic PBTP, Aluminum
Process Temperature
- 0° to 60° C (32° to 140° F) - Plastic PBTP
- -10° to 120° C (14° to 248° F) - AISI 316 Stainless Steel
- -10° to 70° C (14° to 158° F) - Brass Nickel-Plated, Aluminum
Seat / Seal Material
- Seal: FKM - AISI 316 Stainless Steel
- Seal: NBR - Brass Nickel-Plated, Plastic PBTP, Aluminum
