Wilkerson WRA171 Series High Precision Vacuum Regulator, Vacuum to 29.92 Hg
Images are representations only.

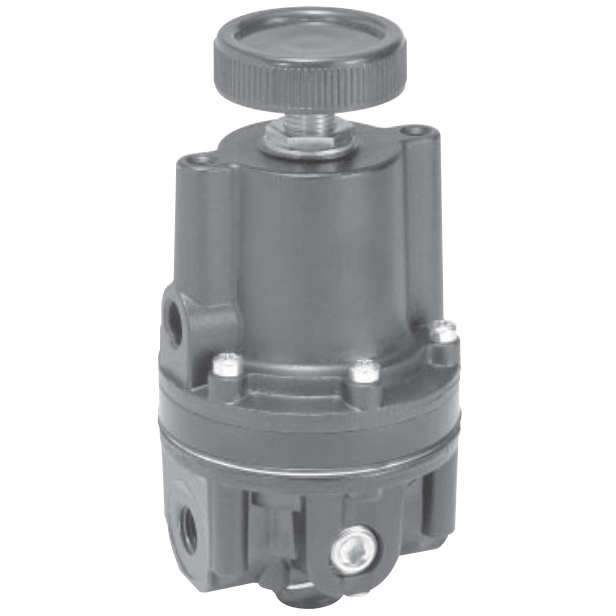

WRA171 Series High Precision Vacuum Regulator

Part Number: WRA17132NNKN Brand: Wilkerson Corporation

0 to 30 Hg Spring, 1/4" NPT Pipe, NPT Thread, Nitrile, Knob Assembly, Non-Relieving

Price
Request a Quote
Stock
Out of Stock
Request Information

The WRA171 is a high accuracy vacuum regulator that provides uniform vacuum regulation independent of vacuum supply changes and flow demand. This unit has a diaphragm assembly with three springs to provide a more balanced loading of the diaphragm.
Features
  • Control sensitivity of 0.125" (0.32 cm) water column allows use in precision applications
  • Balanced supply valve minimizes effects of vacuum variation
  • Aspirator tube compensates for downstream pressure droop under flow conditions
  • A separate Control Chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • Construction allows servicing without removing from the line

Specifications

Brand

Vacuum Supply Max.

  • 29.92 Hg (760 torr)

Flow Capacity

  • 3 SCFM @ 650 torr Sypply, 250 torr Setpoint

Vacuum Supply Effect

  • Less than 1 torr for 100 torr (.04 Hg for 3.94 Hg) Change in Vacuum Supply

Sensitivity

  • .125" (.005 PSIG) (.32 cm) Water Column

Ambient Temperature

  • -40° F to +200° F, (-40° C to 93° C)
