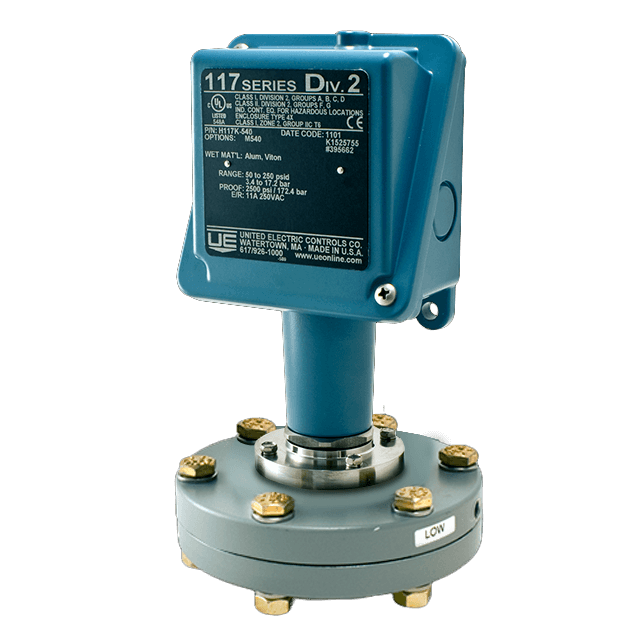

117 Series Type H117K Models 540 to 543 Pressure Switch
Brand: United Electric Controls Ltd.Approved for Division 2, Zone 2 hazardous and corrosive atmospheres, and with optional Zone 0 intrinsic safety compliance, the 117 Series can be used to measure vacuum, pressure, differential pressure, or temperature in a variety of applications.
The rugged, one piece enclosure features a slanted cover for wiring accessibility to the enclosed terminal block that is wired to either a SPDT or DPDT hermetically sealed microswitch. All-welded, stainless steel pressure connections and sensors provide superior corrosion resistance - NACE compliant - and fire-safe protection within the harshest environments.
The 117 Series is an ideal choice for the most demanding applications; typically steel and aluminum mills, chemical and petrochemical plants, pulp and paper mills, wastewater treatment plants, midstream and downstream oil & gas, and pharmaceutical plants.
Specifications
Adjustment Type
- Captive Clamp Screws
- Factory Set (Pre-Set)
- Set Point Adjustment
Ambient Temperature Range
- -18° to 71° C ( 0° to 160° F), Set Point Typically Shifts less than 1% of Range for a 28° C (50° F) Ambient Temperature Change
Applications
- Chemical & Petrochemical
- Midstream & Downstream Oil & Gas
- Pharmaceutical Plants
- Pulp & Paper Mills
- Steel & Aluminum Mills
- Wastewater Treatment Plants
Approvals & Certifications
- ATEX Directive (94/9/EC) II 1 G EEx Ia IIC T6 Ga Tamb: -50° to 60° C (-58° to 140° F)
- CE
- CPT 0ExiaIICT6 Tamb: -50° to 60° C (-58° to 140° F)
- CRN
- CSA
- GOST-R 51330.0, 51330.1, 51330.10 & 51330.14
- Low Voltage Directive (LVD) 73/23/EC & 93/68/EEC
- PED: 97/23/EC
- UL (C) Class I Division 2, Grade A, B, C, D. Class II Division 2, Group F, G. Class III. Class I, Zone 2, Group IIC T6
Approvals & Certifications
- ISO 9001
Conduit Connection
- 1/2" NPT Female
Deadband
- Inches WC: 0.1 to 12
- psi: 0.003 to 0.5 (kPa: 0.02 to 3.5, Mbar: 0.2 to 29.9)
- Temperature Deadband: Typically 4% of Range Under Laboratory Conditions (21.11° C (70° F) Ambient Circulating Bath at Rate of 0.5° F Per Minute Change)
Diaphragm Material
- Buna-N
Electrical Connectors
- 1/2" NPT Female
- 7/8" Diameter Knockout
- 7/8" Hole to 1/2" NPT Female Watertight Conduit Fitting
- Common
Electrical Contacts
- Normally Closed
- Normally Open
- Switch Contacts Gold Flashed
Electrical Rating
- 0.5 A at 125 Vdc
- 1 A at 48 Vdc
- 11 A at 125/250 Vac Resistive
- 5 A at 28 Vdc
Enclosure Finish
- Epoxy Powder-Coated
Enclosure, Body Material
- Gasketed Die Cast Aluminum
Environmental Protection
- Intrinsically Safe
- IP66
- NEMA 4X
- NEMA 7
- NEMA 9
Fill Material
- Non-Toxic Oil Filled
Mounting
- Pipe
- Surface
Name Plate, Tag Material
- Anodized Aluminum
- Stainless Steel, Paper ID Tag & Wire Attachment
NPT Connection
- 1/8" NPT Female
Operating Pressure
- psi: -14.7 to 200 (kPa: -101.4 to 1,379, bar: -1 to 13.8)
Pressure Type
- Differential
Process Connection Material
- Epoxy Coated Aluminum
Proof Pressure
- psi: 400 (kPa: 2,758, bar: 27.6)
Repeatability
- Set Point Repeatability: ± 1% of Adjustable Range
Service
- Oxygen Service Cleaning, Alcohol Cleaning to Remove Residue from the Process Connection
Set Point - Decreasing
- Inches WC: 0.8 to 200
- kPa: 0.02 to 49.8
- mbar: 2 to 497.8
- psi: 0 to 7.2
Set Point - Increasing
- Inches WC: 0.8 to 200
- kPa: 0.02 to 49.8
- mbar: 2 to 497.8
- psi: 0 to 7.2
Shock
- Set Point Repeats after 15 G, 10 millisecond Duration
Storage Temperature
- -54° to 71° C ( -65° to 160° F)
Switch Type
- DPDT
- One SPDT Hermetically Sealed Snap-Action Switch
System Pressure
- bar: -1 to 13.8
- kPa: -101.4 to 1,379
- psi: -14.7 to 200
Vibration
- Set Point Repeats after 2.5 G, 5 to 500 Hz
