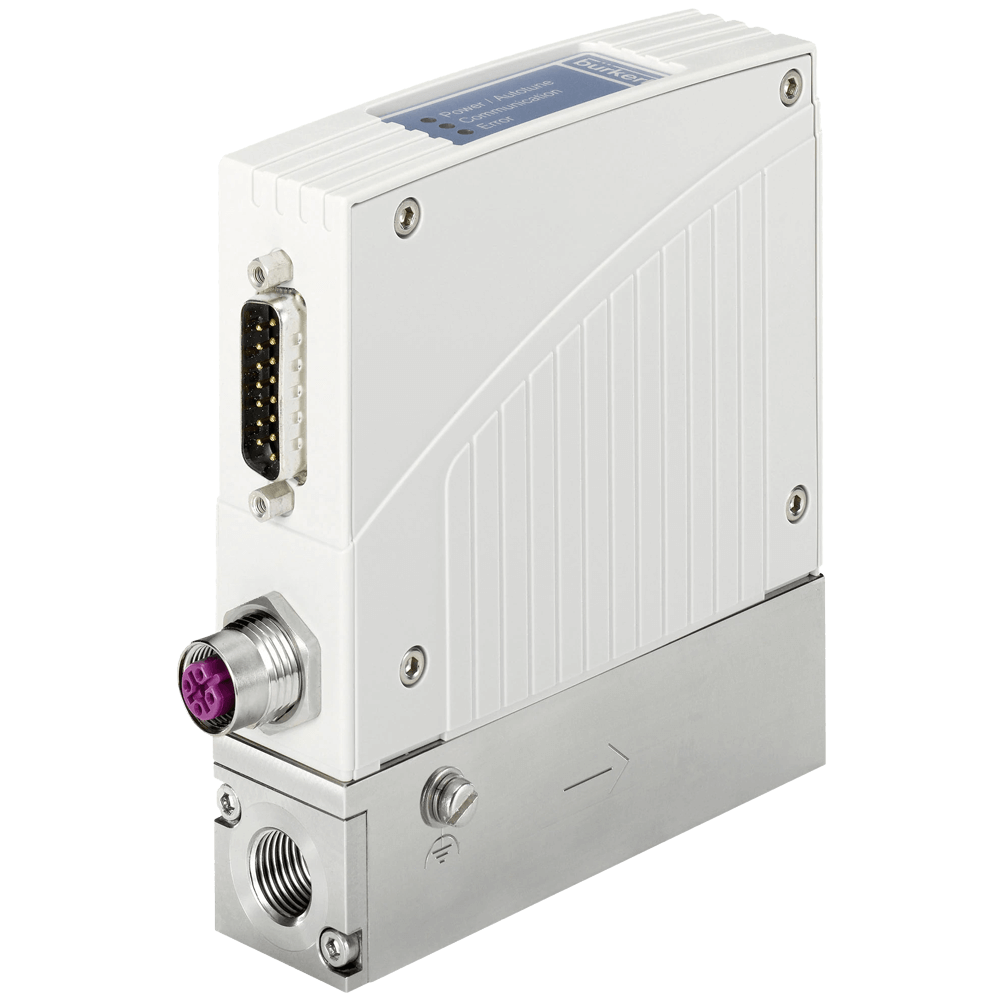

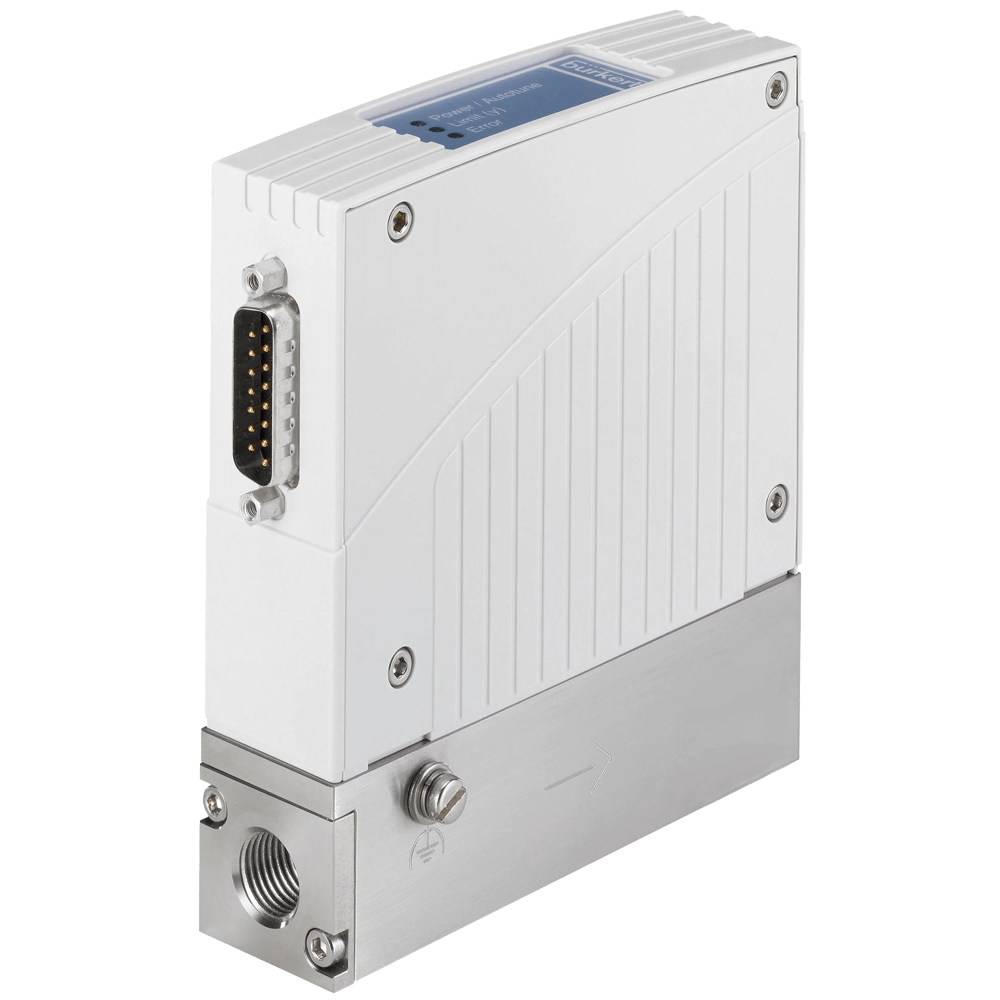

8708 Liquid Flow Meter
Brand: Burkert Fluid Control Systems
Type 8708 is an instrument for liquid flow control in process technology. The actual value supplied by the sensor is transmitted through the digital electronics and over a standard signal output or a field bus interface. In the device two calibration curves can be stored, which the user is able to switch between. The device offers a particularly compact solution. MassFlowCommunicator software can be used for parameterisation and diagnosis.
Specifications
Accuracy
- ± 0.5% of Full Scale
- ± 1.5% of Reading
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Applications
- Bio Reactors
- Fuel Cell Technology
- Heat Treatment
- Liquid Level Measurement
- Machine Tools
- Material Coatings
- Packaging Technology
BSP Connection
- G 1/4" Female
- G 1/8" Female
Communication
- DeviceNet Bus
- Digital
- Fieldbus, CAN Open
- Profibus DP V1
Consumption
- Power Consumption: 5 W with Fieldbus Version
- Power Consumption: Maximum
Electrical Connectors
- DeviceNet & CANopen: M12 Plug, 5-Pin
- D-Sub 15-Pin Connector
- PROFIBUS: 5-Pin M12, Socket
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- Polycarbonate
- Stainless Steel
Environmental Protection
- Typical of Protection: IP40
Flow Rate
- Full Scale Range: 0.015 to 0.6 LPM Water
- Full Scale Range: 0.9 to 36 L/hour
Indication
- LED Indication Power, Communication (Only in Fieldbus Version), Limit (Only in Analog Version) & Error
Media
- Clean & Low Viscous Liquids
- Water
Mounting Position
- Horizontal
- Vertical
NPT Connection
- 1/4" NPT Female
- 1/8" NPT Female
Operating Pressure
- Maximum
- Typical, Maximum
Operating Voltages
- 24 Vdc ± 10%
Output
- 0-10 V, Actual Value
- 0-20 mA (Actual Value)
- 0-5 V, Actual Value
- 4-20 mA (Actual Value)
- Burden (Current Output): 600 ohms, Maximum
- Maximum
Process Temperature
- 10° to 40° C (50° to 104° F)
Relay Output
- One Relay Output: 1 A at 25 V, 25 VA
Repeatability
- ± 0.5% of Full Scale
Response Time
- < 500 milliseconds
Seat / Seal Material
- Seal: EPDM
- Seal: FFKM
- Seal: FKM
Sensor Circuit
- Residual Ripple: < 2%
Sensor, Probe Type
- Differential Pressure
Turndown
- 1:10
Viscosity
- 0.4 to 4 cSt
