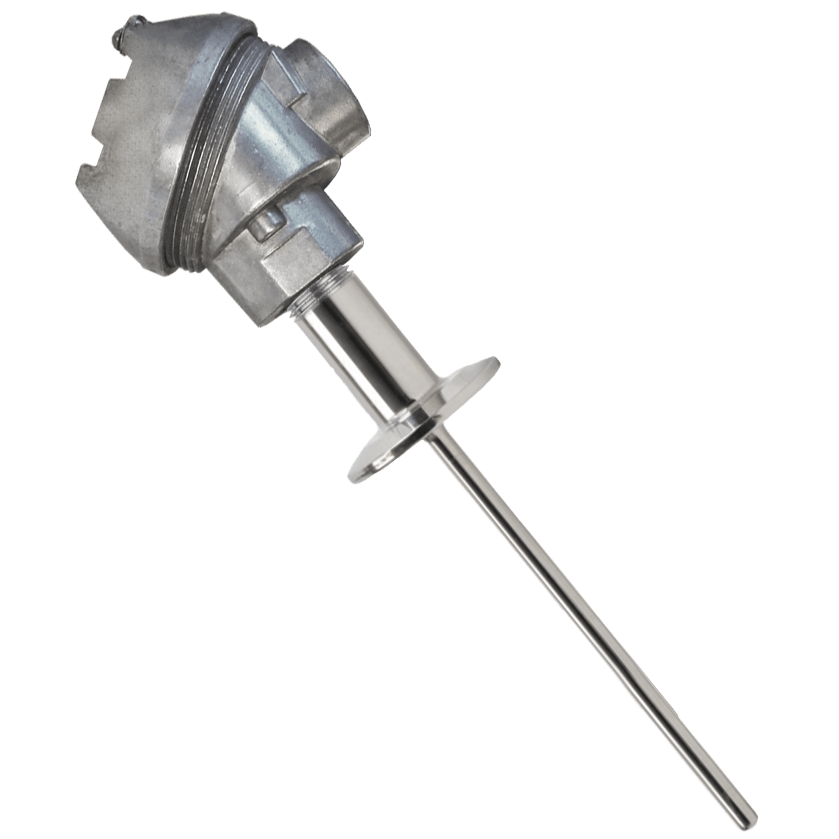

Style 33 Sanitary Process RTD Temperature Sensor
Brand: United Electric Controls Ltd.Designed for use in any pipe or surface temperature measuring application.
Features- NEMA 4 or 4X Terminal Head Option
- Heat transfer pad with excellent temperature response
- Rugged stainless steel sheaths for excellent mechanical protection
- Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
- Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles
Specifications
Accuracy
- ± 0.01%
- ± 0.06%
- ± 0.12%
Approvals & Certifications
- Certificate of Conformance
Communication
- HART
Conduit Connection
- 1/2" NPT
- 3/4" NPT
Diameter
- Sheath: 0.188" to 0.250" (4.78 to 6.35 mm)
Electrical Connectors
- Cable Gland
- Terminal Block
Environmental Protection
- IP66
- NEMA 4
- NEMA 4X
Input
- 4-20 mA, 2-Wire Transmitter
Length
- Sheath Length: 36" (914.4 mm), Maximum
Materials of Construction
- Terminal Head: 316 Stainless Steel
- Terminal Head: Cast or Epoxy Coated Aluminum
- Terminal Head: Polypropylene (Black & White)
NACE & NIST
- NIST Traceable Calibration
Name Plate, Tag Material
- Stainless Steel
Operating Temperature - Sensor
- -45° to 200° C (-50° to 400° F)
Output
- 4-20 mA, 2-Wire Transmitter, Isolated or Non-Isolated Output
RTD Type
- Pt100
Sensor, Probe Connection
- 3-Wire
Sensor, Probe Type
- RTD
Size
- Cap Size: 0.5" to 4" (12.7 to 101.6 mm)
Temperature Range
- Maximum
Tri-Clamp Connection
- 1" Tri-Clamp®
- 1/2" Tri-Clamp®
- 1-1/2" Tri-Clamp®
- 2" Tri-Clamp®
- 2-1/2" Tri-Clamp®
- 3" Tri-Clamp®
- 3/4" Tri-Clamp®
- 4" Tri-Clamp®
