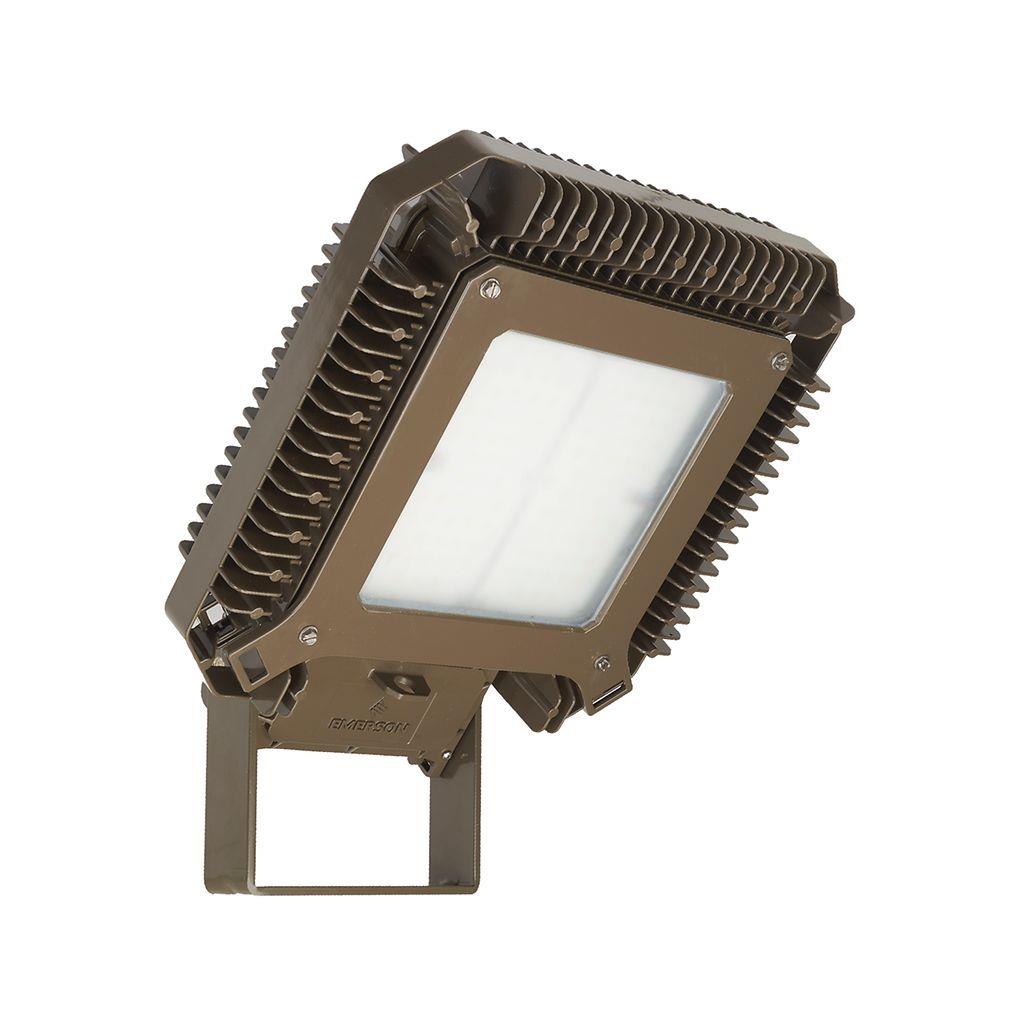

Appleton™ Areamaster™ Generation 2 HL Zone 1 LED Luminaires

Brand: Appleton

Areamaster™ Generation 2 HL LED Luminaires deliver best-in-class LED performance. The redesigned Areamaster provides greater versatility, with models from 23,000 to 36,000 lumens and a choice of beam patterns to meet your diverse floodlighting needs. Featuring optic designs that deliver superior uniformity and coverage, the Areamaster Generation 2 HL LED luminaires provide HID-equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for NEC and CEC Class I, Division 2 and Class II hazardous locations, marine and wet locations as well as ATEX/IECEx Zones 2 and 22.
Features
  • Typical applications include Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment Facilities and other areas.
  • Three lumen outputs provide up to 36,000 lumens with a choice of optics for optimal light distribution.
  • Separate field wiring compartment with screw terminal block for easy and secure connection (can accept 0.14-6 mm², UL/CSA 26-10AWG).
  • Choice of color temperature (CCT); 5000K cool white, 4000K neutral white or 3000K warm white.
  • Rugged and compact housing with superior thermal design translates to long luminaire life.
  • Heavy duty, high temperature silicone rubber gaskets.
  • Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners. Guard and visor available, purchase separately.
  • Standard 6KV surge protection.
  • Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slipfitters for easy retrofit. Slip-fitters and mounting brackets available for easy pole or wall mounting.
  • Two 3/4" NPT entries provided. Order "M" suffix for two M20 Metric entries.
  • Field replaceable LED driver and lens cover available.

    • Specifications

    Brand

    Ambient Temperature Range

    • -40° to +65° C / +55° C (-40° to +149° F / +131° F)

    Approvals & Certifications

    • Zone 1, 2, 21, 22, Ex II 2 GD, Ex Eb Mb Op is LlC T6 to T3, IP64, 66, 67, IK08

    Electrical

    • 120-277 Vac 50/60 Hz, 170-300 Vdc, 50/60 Hz

    Lumens to Watts

    • 23,000 Lumens is 1000 W HID, 28,500 Lumens is 1000-1500 W HID, 36,000 Lumens is 1500 W HID

    Standard Finishes

    • Architectural Bronze Polyester Housing, Lens Cover, Visor & Yoke Mount

    Standard Materials

    • Copperfree (4/10 of 1% Max.) Aluminum Housing & Lens Door, Silicone Rubber Gaskets, Zinc-Plated HR Steel Yolk, Stainless Steel Bolts, Guard & Safety Cable, Aluminum Visor & (1) Close Up Plug (provided)
