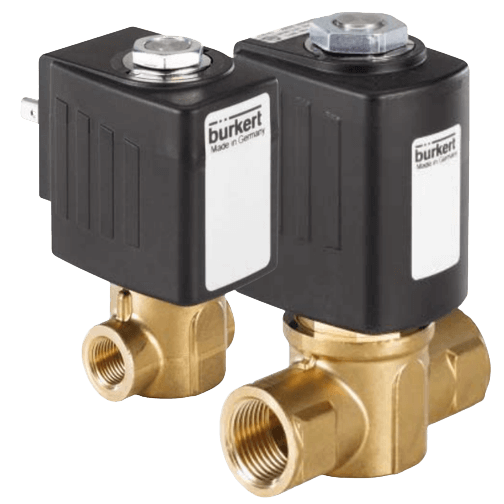

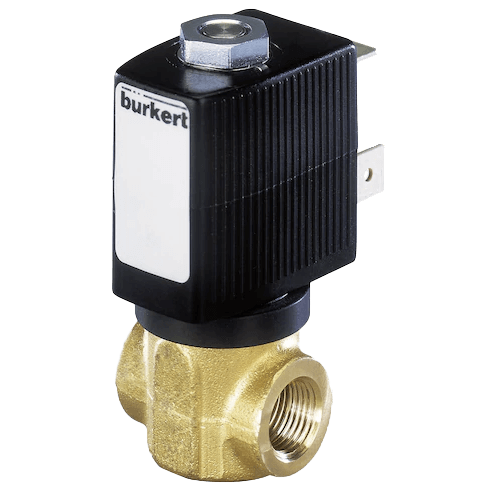

6027 2/2-Way Solenoid Valve
Brand: Burkert Fluid Control Systems
Type 6027 are direct acting solenoid valves. Depending on the version, these valves can be used either as feed line, return line or circulation valves.
The valves fulfill the requirements of a safety shut off valve according to DIN EN ISO 23553-1. It is approved by TUV-Sud and certified by DIN Certco.
The universal coil system reduces logistics and service expenses.
Features:
- NC-valves, approved according to DIN EN ISO 23553-1
- Medium: liquid fuels
- Easy servicing due to modular coil system
- Feed line, return line or circulations valve
- IP65
Specifications
Ambient Temperature Range
- -15° to 60° C (5° to 140° F)
Applications
- Circulation Valve
- Feed Line Valve
- Return Line Valve
Approvals & Certifications
- DIN Certco
Approvals & Certifications
- TÜV
BSP Connection
- G 1/2" Female
- G 1/4" Female
- G 1/8" Female
- G 3/8" Female
Consumption
- Power Consumption: 24-180 VA (Inrush)
- Power Consumption: 8-20 W (Operation)
Duty Cycle
- Continuous Operation 100% ED
Electrical Contacts
- Normally Closed Valves, Approved According to DIN EN ISO 23553-1
Enclosure, Body Material
- Brass
Environmental Protection
- IP65
Flow Rate
- Water: 0.15 to 2 Kv (m³/hour)
Materials of Construction
- 434 Stainless Steel (1.4113)
- Coil (Insulation Class B): Polyamide, Only DN 2.2 NC
- Coil (Insulation Class H): Epoxy
- Plunger: 430FR Stainless Steel (1.4105)
- Stopper (1.4113), Strainer (Only DN3 & 3.5): Stainless Steel
Media
- Fatty Acid Methyl Esters (FAME) According to DIN EN 14213
- Heating Oil (EL, L, M, S) According to DIN 51603 Part 1-6
- Rapeseed Oil According to DIN V 51605
- Shipping Fuels According to ISO 8217, Liquid Fuels
Mounting Position
- Preferably with Actuator Upright
Orifice Size
- 0.086" to 0.393" (2.2 to 10 mm)
Pressure Range
- psi: 0 to 435 (kPa: 0 to 3,000, bar: 0 to 30)
Process Temperature
- Coil Insulation Class B: 0° to 70° C (32° to 158° F), Only DN 2.2 NC
- Coil Insulation Class H: 0° to 160° C (32° to 320° F)
Response Time
- Closing Time: 25 to 50 milliseconds
Ring Material
- Seal Ring: FKM
Seat / Seal Material
- PTFE
- Seal: FKM (External)
Solenoid Type
- 2/2-Way
Spindle Material
- Spindle: 303 Stainless Steel, 1.4305
Spring Material
- 301 Stainless Steel, 1.4310
Viscosity
- 1.6 to 76 cSt (DN2.2 NC 1.6 to 22 cSt)
Voltage
- 110-120 V / 50 Hz
- 220-240 V / 50 Hz
