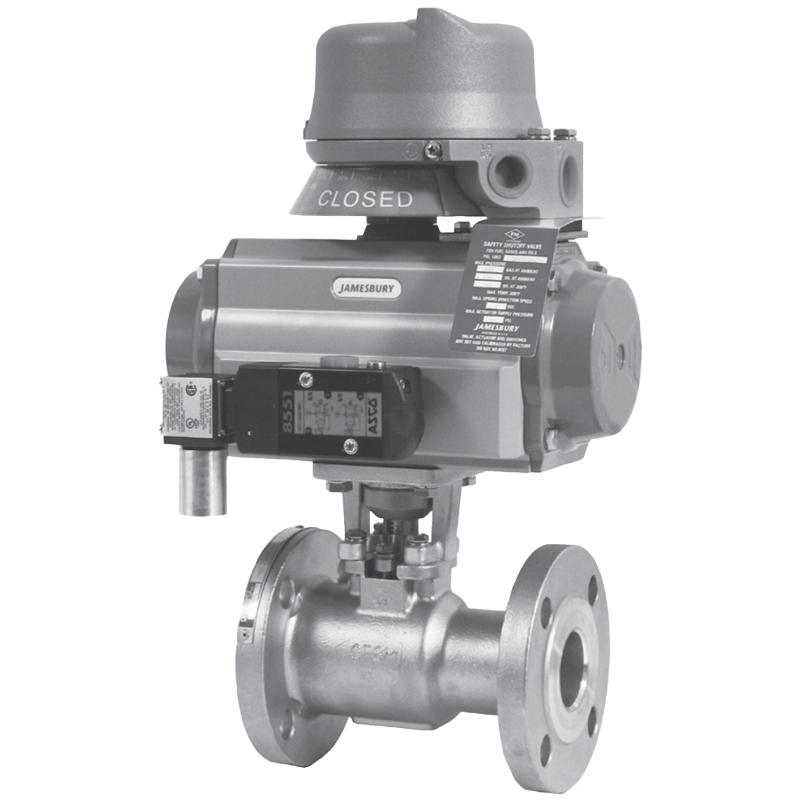

Jamesbury Figure 1052 Safety Shutoff Valve
Brand: MetsoThe Jamesbury Figure 1052 Automatic Safety Shut Off Valves are FM Global approved to standard number 7400 and 7440 for providing protection against hazards during operation of fuel systems or fuel burning equipment.
The valves will operate quickly to isolate or vent upon loss of electrical signal, and operate to isolate or vent if the instrument air pressure is lost.
Specifications
Brand
Actuator Type
- Pneumatic
- Spring Diaphragm
- Spring Return
Approvals & Certifications
- API 598
Approvals & Certifications
- FM
- PED
Bearing Material
- Backed: Stainless Steel
- Guide: UHMW Polyethylene
Enclosure Finish
- UV Resistant Polyurethane Polyurethane
- Zinc Phosphate Epoxy Based Primer Coat
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCB)
- PTFE-Coated Aluminum
Environmental Protection
- IP66
- IP67
- NEMA 4
- NEMA 4X
- NEMA 6
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - 150# (ASME)
- 1-1/2" (DN40) - 300# (ASME)
- 1-1/2" (DN40) - 600# (ASME)
Flange Size - 1-1/4" (DN32)
- 1-1/4" (DN15) - 300# (ASME)
- 1-1/4" (DN32) - 150# (ASME)
- 1-1/4" (DN32) - 600# (ASME)
Flange Size - 1" (DN25)
- 1" (DN25) - 150# (ASME)
- 1" (DN25) - 300# (ASME)
- 1" (DN25) - 600# (ASME)
Flange Size - 1/2" (DN15)
- 1/2" (DN15) - 150# (ASME)
- 1/2" (DN15) - 300# (ASME)
- 1/2" (DN15) - 600# (ASME)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME)
- 2" (DN50) - 300# (ASME)
- 2" (DN50) - 600# (ASME)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME)
- 3" (DN80) - 300# (ASME)
Flange Size - 3/4" (DN20)
- 3/4" (DN20) - 150# (ASME)
- 3/4" (DN20) - 300# (ASME)
- 3/4" (DN20) - 600# (ASME)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME)
- 4" (DN100) - 300# (ASME)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME)
- 6" (DN150) - 300# (ASME)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME)
- 8" (DN200) - 300# (ASME)
Flow Rate
- 13 to 111 Cv - Series 4000 (Standard Port)
- 13 to 135 Cv - Series 4000 (Full Port)
- 6 to 111 Cv - Eliminator & A Style
- 9 to 1,890 Cv - Standard Port Flanged Valve
- 9 to 5,100 Cv - Full Port Flanged Valve
Media
- Gas
- Liquids
NPT Connection
- 1" NPT
- 1/2" NPT
- 1/4" NPT
- 1-1/2" NPT
- 1-1/4" NPT
- 2" NPT
- 3/4" NPT
- 3/8" NPT
Operating Pressure
- Gas, Unheated Oil - psi: 275 to 1,200 (kPa: 1,900 to 8,270, bar: 19 to 82.7), Maximum
- Heated Oil - psi: 100 to 350 (kPa: 700 to 2,400, bar: 7 to 24), Maximum
Port
- Full
- Reduced
Pressure Drop
- psi: 1 (kPa: 6.9, bar: 0.69)
Seat / Seal Material
- Seat: PTFE
- Seat: XTREME
Switch Type
- DPDT
- SPDT
Voltage
- Solenoid: 120 Vac / 60 Hz
- Solenoid: 24 Vdc
- Solenoid: 240 Vac / 60 Hz
Welded Connection
- 1" Socket Weld End
- 1/2" Socket Weld End
- 1-1/2" Socket Weld End
- 1-1/4" Socket Weld End
- 2" Socket Weld End
- 3/4" Socket Weld End
