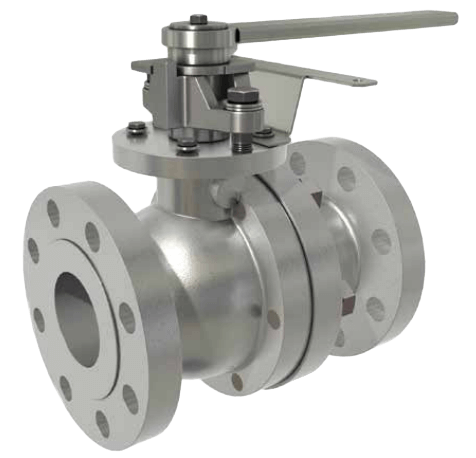

Cameron Split-Body Full-Port Flanged Ball Valve, 2800
Images are representations only.

2800 Split-Body Full-Port Flanged Ball Valve

Brand: Cameron
Request Information
Favorite

Cameron’s TBV series 2800 split-body, full-port, flanged ball valve is specifically designed to tackle severe service applications. Materials include cast stainless steel, monel, Hastelloy®, titanium, alloy 20 and others as required. The TBV series 2800 split-body, full-port, flanged ball valve combines its sealing technology and design expertise, with the versatility to solve even the most demanding applications. This technology is widely used in the chemical, petrochemical and refining industries, as well as many others where valve reliability is of the utmost importance. As with all TBV valves, quality, flexibility, long service life and safety make the TBV series 2800 split-body, full-port, flanged ball valve the ultimate choice for your critical applications.

    View Details

    Specifications

    Brand

    Actuator Type

    • Gear Operator
    • Handle

    Applications

    • Category M
    • Chlorine
    • Fugitive Emissions Services
    • High Cycles
    • High Temperatures
    • Insulated Services or Metal Seats
    • Polymer Lines
    • Steam
    • Thermal Fluids
    • Toxic Media

    Approvals & Certifications

    • API 607
    • API 608

    Approvals & Certifications

    • CE
    • MSS-SP-72
    • TÜV

    Ball Material

    • 316 Stainless Steel
    • 630 Stainless Steel
    • Alloy 20 or Incoloy®
    • Carbon Steel - A216 WCB
    • Duplex Stainless Steel
    • Hastelloy® C
    • Monel® 400
    • Nickel 200
    • Nitronic 50

    Enclosure, Body Material

    • 316 Stainless Steel
    • 630 Stainless Steel
    • Alloy 20 or Incoloy®
    • Carbon Steel (A216 WCB)
    • Duplex Stainless Steels
    • Hastelloy® C
    • Monel® 400
    • Nickel 200
    • Nitronic 50

    Flange Size - 1-1/2" (DN40)

    • 1-1/2" (DN40) - 150# (ASME)
    • 1-1/2" (DN40) - 300# (ASME)
    • 1-1/2" (DN40) - 600# (ASME)

    Flange Size - 1" (DN25)

    • 1" (DN25) - 150# (ASME)
    • 1" (DN25) - 300# (ASME)
    • 1" (DN25) - 600# (ASME)

    Flange Size - 1/2" (DN15)

    • 1/2" (DN15) - 150# (ASME)
    • 1/2" (DN15) - 300# (ASME)
    • 1/2" (DN15) - 600# (ASME)

    Flange Size - 2" (DN50)

    • 2" (DN50) - 150# (ASME)
    • 2" (DN50) - 300# (ASME)
    • 2" (DN50) - 600# (ASME)

    Flange Size - 3" (DN80)

    • 3" (DN80) - 150# (ASME)
    • 3" (DN80) - 300# (ASME)
    • 3" (DN80) - 600# (ASME)

    Flange Size - 3/4" (DN20)

    • 3/4" (DN20) - 150# (ASME)
    • 3/4" (DN20) - 300# (ASME)
    • 3/4" (DN20) - 600# (ASME)

    Flange Size - 4" (DN100)

    • 4" (DN100) - 150# (ASME)
    • 4" (DN100) - 300# (ASME)
    • 4" (DN100) - 600# (ASME)

    Flange Size - 6" (DN150)

    • 6" (DN150) - 150# (ASME)
    • 6" (DN150) - 300# (ASME)
    • 6" (DN150) - 600# (ASME)

    Flange Size - 8" (DN200)

    • 8" (DN200) - 150# (ASME)
    • 8" (DN200) - 300# (ASME)
    • 8" (DN200) - 600# (ASME)

    Flow Capacity

    • 30 to 10,000 Cv for Valve Size [1/2" to 8" (12.7 to 203.2 mm)] - Full Port

    NACE & NIST

    • NACE MR-0175

    Nut & Bolt Material

    • 300 Stainless Steel - Bolt Material
    • A193 Grade B8 x A194 Grade 8 - Bolt Material
    • ASTM A193 B7 x A194 Grade 2H - Bolt Material
    • ASTM A193 B7M x A194 7M - Bolt Material
    • ASTM A193 B8 CL2 x A194 Grade 8 - Bolt Material
    • ASTM A193 B8M x A194 8M - Bolt Material
    • Carbon Steel - Bolt Material

    Packing Material

    • Graphite

    Port

    • Full

    Pressure Range

    • psig: 0 to 4,000 (kPa: 0 to 27,600, bar: 0 to 276)

    Seat / Seal Material

    • Seal: Grafoil
    • Seat: 15% Glass-Filled PTFE
    • Seat: Cryofil
    • Seat: Delrin® AF
    • Seat: KEL-F
    • Seat: Metal
    • Seat: Reinforced PTFE
    • Seat: Thermafil
    • Seat: UHMWPolyethelyne
    • Seat: Ultrafil 25
    • Virgin PTFE

    Stem Material

    • 316 Stainless Steel
    • 630 Stainless Steel
    • Alloy 20 or Incoloy®
    • Carbon Steel (A216 WCB)
    • Duplex Stainless Steel
    • Hastelloy® C
    • Monel® 400
    • Nickel 200
    • Nitronic 50 HS

    Temperature Range

    • -18° to 650° C (0° to 1,200° F)
