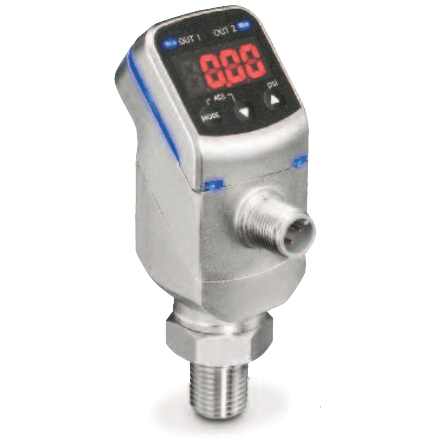

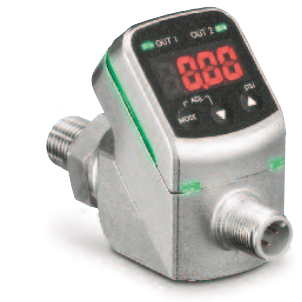

The GC35 is ideal where consistent, and reliable pressure measurement is essential.
Features- Hydraulic presses, stamping equipment, lifts
- Water/wastewater pressure control
- Water, refrigerant or ammonia based cooling systems
- Pressure monitoring on lubrication systems
Specifications
Brand
Accuracy
- Analog Output: ± 1% of Full Scale Includes the Effects of Linearity, Hysteresis & Repeatability,
Applications
- Ammonia Based Cooling Systems
- Hydraulic Presses
- Lift Stations
- Pressure Monitoring for Lifts, Vulcanizers & Lubrication Systems
- Refrigerators
- Stamping Presses Equipment
- Tire Presses Vulcanization
- Water/Wastewater Pressure Control
Approvals & Certifications
- Traceable 9-Point Calibration Report
- CE EN 61326-1 2006, EN 61326-2-3 2006
- RoHS
Burst Pressure
- 10 times Range psi: 1,500 (kPa: 10,342, bar: 103.4) & Below
- 3 times Range psi: 5,000 (kPa: 34,474, bar: 344.7) & above
- 5 times Range psi: 3,000 (kPa: 20,684, bar: 206.8) & Below
Compensated Temperature
- -20° to 70° C (-4° to 158° F)
Consumption
- Current Consumption: 50 mA DC, Maximum
Diaphragm Material
- Sensor Diaphragm: 630 Stainless Steel (17-4 PH)
Display
- 4-Digit
- 8 mm LED Display
Electrical Connectors
- M12 4-Pin
Electrical Rating
- NPN Typical: 80 mA at 30 Vdc, Maximum
- PNP Typical: 80 mA at 1 Vdc, Maximum
Enclosure, Body Material
- 316 Stainless Steel
- Nickel-Plated Aluminum
Environmental Protection
- IP65 (Ranges 150 psi & Below)
- IP67 (Ranges 300 psi & above)
Humidity
- 0 to 100% Relative Humidity (Ranges 300 psi & above)
- 0 to 85% Relative Humidity (Ranges 150 psi & Below)
Media
- Fluids
- Gas
NPT Connection
- 1/4" NPT Male
Operating Temperature
- -20° to 70° C (-4° to 158° F)
Output
- 4-20 mA
Pressure Range
- bar: -1 to 517.1
- kPa: -103.4 to 51,711
- psi: -15 to 7,500
Pressure Type
- Compound Pressure
- Gauge
Proof Pressure
- 2.5 times Range psi: 3,000 (kPa: 20,684, bar: 206.8)
- 4 times Range psi: 1,500 (kPa: 10,342, bar: 103.4)
Resolution
- Output Resolution: ± 0.05% of Full Scale
Response Time
- Analog Output: 30 milliseconds to 10 seconds
- Pressure Switch Output: 5 milliseconds to 10 seconds
Stability
- ± 0.25% of Full Scale/Year
Storage Temperature
- -20° to 70° C (-4° to 158° F)
Supply Voltage
- 11-36 Vdc (Switch Output Version Only)
- 16-36 Vdc (with Analog Output Option)
Switch Type
- Transistor (NPN, PNP Open Collector)
Temperature Effect
- Zero & Span: ± 0.1% of Full Scale / °C (from 23° C Reference Temperature)
Update Time
- Display Update Rate: 200 milliseconds to 10 seconds
Voltage
- Insulation Voltage: 50 Vdc, 100 MegaOhms (Minimum)
- Withstand Voltage: 350 Vac, 1 Minute
Wetted Materials
- Stainless Steel
