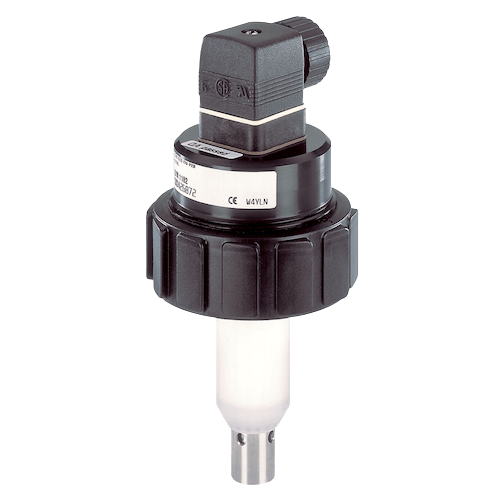

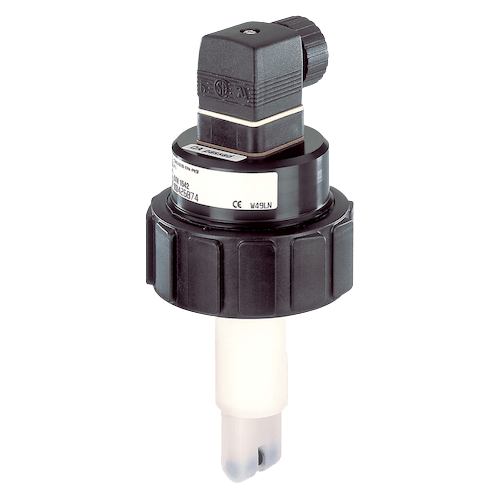

8220 Conductivity Sensor
Brand: Burkert Fluid Control Systems
The conductivity sensor is a compact probe with integrated conductivity electrodes. Four conductivity probes having different cell constants are available and offer a large measurement range. The Pt1000 for automatic temperature compensation is integrated in the sensor housing. The sensor transmits directly a raw signal and is fitted with a standard EN 175301-803 plug connector.
The sensor has to be connected to the Burkert conductivity transmitter Type 8225 for panel or wall mounting or to the multiCELL transmitter/ controller Type 8619 via a shielded cable (maximal cable length of 10 meters).
Features- Compact version for DN15 to DN200
- Large capabilities of conductivity measurement through different cells
- Large range of process connections with various fittings
Specifications
Ambient Temperature Range
- Operation & Storage: 0° to 60° C (32° to 140° F)
Approvals & Certifications
- CE
- EU Directives
- PED 2014/68/EU
Cable Length
- 32.8 feet (10 meters)
Compensated Temperature
- Temperature Measurement: Automatic (Integrated Pt1000) - Reference Temperature 25° C (77° F)
Current
- 4-20 mA
Diameter
- Pipe: 0.59 to 7.8" (15 to 200 mm)
Electrical Connectors
- 4 x 0.2 to 1.5 mm² Shielded
- Cable Plug EN 175301-803
Enclosure, Body Material
- Polycarbonate (PC)
Environmental Protection
- IP65
Humidity
- ≤ 80% Relative Humidity, Non-Condensing
Materials of Construction
- Electrode: Stainless Steel for Cell Constant C= 0.01 or 0.1
- Graphite for Cell Constant C= 1.0 or 10
Measuring Error
- Conductivity Measurement Deviation - Typical: 3 to 5% of Measured Value
- Temperature Measurement Deviation: ± 1° C (1.8° F)
Measuring Range
- Conductivity Measurement: 0.05 to 200,000 µS/cm
Media
- Water
Pipe Connection
- DN100 Pipe
- DN15 Pipe
- DN20 Pipe
- DN25 Pipe
- DN32 Pipe
- DN40 Pipe
- DN50 Pipe
- DN65 Pipe
- DN80 Pipe
Plug Material
- Cable Plug: Polyamide (PA)
Pressure Range
- psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10), Maximum
Process Temperature
- PP: 0° to 80° C (32° to 176° F)
- PVC: 0° to 50° C (32° to 122° F)
- PVDF, Stainless Steel, Brass: 0° to 100° C (32° to 212° F)
Resolution
- Temperature Measurement: 0.1° C
RTD Type
- Pt1000
Screw Material
- Stainless Steel
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Sensor, Probe Material
- Pt1000: 316Ti Stainless Steel 1.4571
Temperature Range
- Measuring Range: -50° to 150° C (-58° to 302° F)
Welded Connection
- DN 100 Weld End
- DN 125 Weld End
- DN 150 Weld End
- DN 200 Weld End
- DN 50 Weld End
- DN 65 Weld End
- DN 80 Weld End
Wetted Materials
- Fitting, Sensor Holder: PVDF
- Fitting: 316L Stainless Steel, 1.4404
- Fitting: Brass
- Fitting: Polypropylene (PP)
- Fitting: PVC
