Emerson Appleton Timer Control Station, ECS Series
Images are representations only.

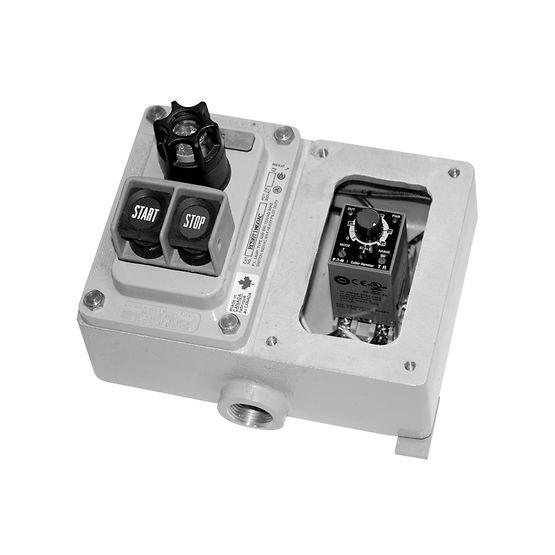

Appleton™ ECS Series Timer Control Station

Brand: Appleton

Appleton™ explosionproof, dust-ignitionproof ECS Series timer control stations provide the ability to operate electrical circuits for things like lighting, small pumps and heat tracing systems for specified periods. This quality CMOS type electronic timer allows for a timing range of 0.1 seconds to 600 hours.
Features
  • Explosionproof, Dust-Ignitionproof. Ideal for installation in chemical and petrochemical plants, refineries and other process industries.

  • Corrosion resistant, captive stainless steel hex head bolts fix the cover to the body.

  • Lockable push buttons are supplied standard with neoprene weatherprotected boot.

  • Yellow LED indicator light for easy confirmation of activation.

  • Corrosion resistant, gray polyester finished body.

  • Rated operational voltage of 100-240 Vac 50/60 Hz with a published tolerance of 85-264 Vac at 10 Amps (resistive).

  • Suitable for operation in ambient temperatures of -20 °C to +65 °C (-4 °F to +149 °F).

  • Timer tested for shock and vibration resistance.

    • Specifications

    Brand

    4X Certification

    • CSA Typical 4X Enclosure & Cover Available. See Catalog Pages for Details

    Approvals & Certifications

    • Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, CSA Typical 3R, 7B, C, D, 9EFG

    Standard Materials & Finishes

    • Cast Copperfree (max. 4/10 of 1%) Aluminum Enclosure with Electrostatically Applied Gray Polyester Epoxy Powder-Coated, Supplied with An O-Ring Seal. Indicator Light Has A Polyester Finished Aluminum Guard & Body Assembly. Steel Clamping Ring with Temper
