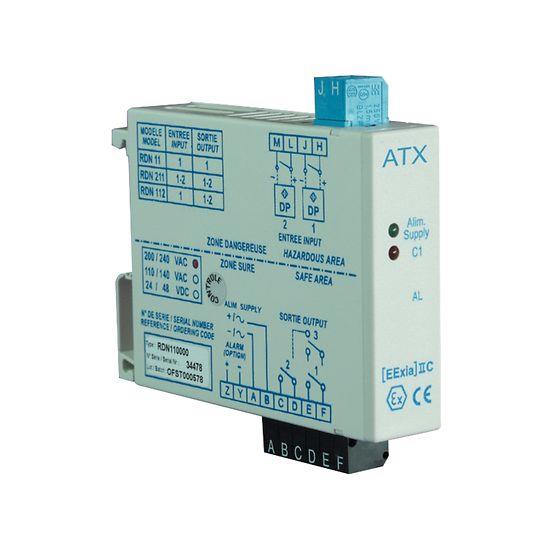

Appleton™ ATX™ RSI Intrinsic Safety Relay

Brand: Appleton
Request Information
Favorite

Appleton™ ATX™ RSI Series intrinsic safety relays are designed for use in for flameproof enclosures. They provide galvanic isolation of the circuits between a Increased Safety (IS) area and a safe (NIS) area. The 1-channel relay is for installation in a NIS area or Exd (flameproof) enclosure; it transmits to the NIS area one signal received from the IS area. The 2-channel relay is for installation in a NIS area; it transmits to the NIS area two signals received from the IS area.
Features
  • Intrinsic safety.

  • Mounting on EN 50 022 rail.

  • Input signal (from hazardous area) selected by jumpers. 2-wire NAMUR proximity switch. Volt-free contact (switched current 8.2. V, 8 mA).

  • Direct or reverse repeater selected by jumper.

  • Connection: 2-conductr cable, dielectric strength 500 V, cross-section 2.5 mm² (0.004 in²), distance between cables: 8 mm (0.315").

  • Connection: 2.5 mm² (0.004 in²) maximum.

  • 1-Channel relay can be supplied with 24 - 28 Vdc, 110 - 140 Vac, 200 - 240 V. Output signal (safe area): electromagnetic relay, 1 changeover switch. 6 Amp maximum (at 24 V). Maximum: 5 Amp, 250 V, 10 Hz (switching frequency).

  • 2-Channel relay can be supplied with 24 - 48 Vdc, 110 - 140 Vac, 200 - 240 V. Output signal (safe area): electromagnetic relay, 2 changeover switches. 6 A maximum (at 24 V). Maximum: 5 Amp, 250 V, 10 Hz (switching frequency).

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10

    Surface Temperature

    • -10° to +60° C (-14° to +140° C)
