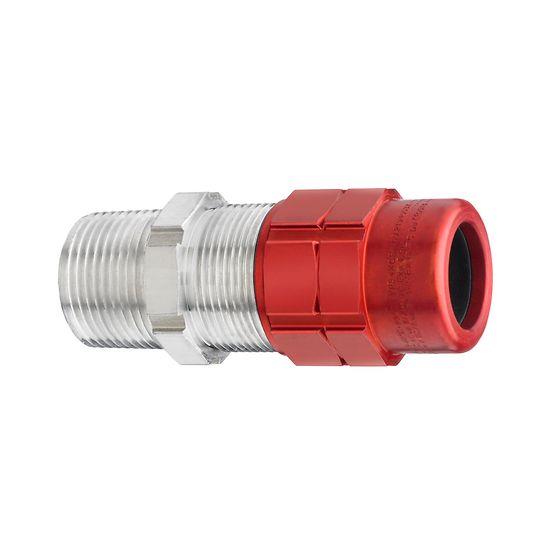

Appleton™ TMC2X Connectors For Jacketed Metal Clad Cable

Brand: Appleton

Appleton™ TMC2X Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK) cables. They utilize RapidEx high speed liquid resin sealing compound. TMC2X connectors are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
Features
  • Utilizes RapidEx high speed liquid resin sealing compound included with each gland.

  • For use on horizontal or vertical runs.

  • Simplified two piece design.

  • Independent sealing and armor clamping/ grounding.

  • True 360° grounding.

  • Removable cable armor end stop accommodates larger insulated conductors.

  • Superior pull out prevention.

  • Compact slim profile.

  • Widest cable acceptance range.

  • Disconnectable design.

  • Additional integral deluge proof seal for protection in extreme offshore and onshore environments.

  • Continuous operating temperature: -60 °C to +85 °C (-76 °F to +185 °F).

    • Specifications

    Brand

    Cable Armor Diameter Range

    • 0.42" Thru 3.94"

    Cable Jacket Diameter Range

    • 0.50" Thru 4.25"

    Connector Material

    • Bodies, Sleeve & Gland Nut are available in Copperfree (4/10 of 1% Max.) Aluminum, Nickel-Plated Brass, or Stainless Steel

    NEC/CEC Certifications & Compliances

    • Class I, Divisions 1 & 2, Groups A, B, C, D, Class I, Zone 1, AEx D IIC, AEx E II, AEx TA IIC, Class I, Zone 1, EX E II, Ex TA IIC, Class II, Division 1 & 2, Groups E, F, G, Class III, Divisions 1 & 2, NEMA 4X, IP66

    Other Standard Materials

    • Grounding Spring is Stainless Steel. Bushing is LSF-TPE (halogen Free). End Stop Washer is Nylon. Viton O-Ring.

    Threads

    • NPT Threads are Standard. Metric Threads Available (add Metric Thread Size to the End of Catalog Number)

    Trade Sizes

    • 1/2" Thru 4"
