AT10 Thermocouple

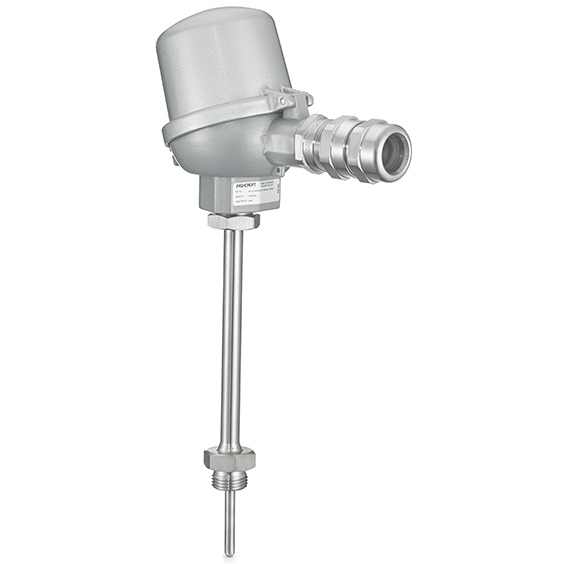

Brand: Ashcroft Inc.The Ashcroft AT10 temperature sensor assemblies provide accurate temperature measurements for most applications.
Each temperature sensor assembly consists of a spring loaded temperature sensor insert, a connection head and lag extension. The assembly may also include an optional terminal block for wiring and/or transmitters.
Thermocouple assemblies are manufactured to either to IEC 60584-2 or ANSI MC 96.1 and RTD assemblies are manufactured to IEC 60751.
Features- Designed for DIN 43772 thermowells
- Manufactured to 60584-2, or ANSI MC 96.1
- Available with and without transmitters
Specifications
Brand
Accuracy
- Class 1, Typical J, K, T, E, N: ± 1.5° C (± 2.7° F) or Absolute ± 0.0040° C (± 0.0072° F)
- Class 2 Typical J, K, E, N Class 3 Typical K, E, N: ± 2.5° C (± 4.5° F) or Absolute ± 0.0075° C (± 0.0135° F), ± 0.0040° C (± 0.0072° F), ± 0.0150° C (± 0.027° F)
- Class 3 Typical T, Class 2 Typical T: ± 1° C (1.8° F) or Absolute ± 0.0150° C (0.027° F), ± 0.0075° C (± 0.0135° F)
- Standard Typical E: ± 1.7° C (± 3° F) or Absolute ± 0.0050° C (± 0.009° F)
- Standard Typical J & K, N: ± 2.2° C (± 3.96° F) or Absolute ± 0.0075° C (± 0.0135° F), ± 0.040° C (± 0.0072° F)
Applications
- Biotechnology
- Cooling Towers
- Food & Beverage
- HVAC/R
- Industrial Equipment Manufacture
- Industrial Ovens
- Pharmaceutical
- Power Generation Equipment
- Reactors
Approvals & Certifications
- ATEX: Ex Ia IIC T6
- IECEx: Ex Ia IIC T6 Ga
BSP Connection
- G 1/2" A Female
- G 3/4" A Female
Diameter
- Stem: 0.11 to 0.31" (3 to 8 mm)
Electrical Connectors
- Ceramic Terminal Block
Environmental Protection
- IP64
- IP66
- IP68
Gland Material
- Cable: Nickel Plating Brass
- Cable: Polyamide
- Cable: Stainless Steel
Lagging Extension
- 2 to 39" (0.05 to 1 Meter)
Materials of Construction
- Head: Aluminum Alloy
- Head: Plastic
Metric Connection
- M14 x 1.5 Female
- M18 x 1.5 Female
Mounting
- Head Mounting Connection: 1/2" NPT Female
- Head: M20 x 1.5
- Head: Pg 16
- Sensor Mounting
Name Plate, Tag Material
- Metal
NPT Connection
- 1/2" NPT Male
Process Connection Material
- AISI 316 Stainless Steel
Sensor, Probe Connection
- Thermocouple: 2-Wire
Sensor, Probe Type
- E Thermocouple -200° to 800° C (-328° to 1,472° F)
- J Thermocouple -40° to 750° C (-40° to 1,382° F)
- K Thermocouple -200° to 1,100° C (-328° to 2,012° F)
- N Thermocouple -200° to 1,100° C (-328° to 2,012° F)
Stem Length
- 2 to 3,937" (0.05 to 100 meters)
Stem Material
- AISI 316L Stainless Steel
- Inconel® 600
