BD Sensors Pressure Transmitter, DMK 457
Images are representations only.

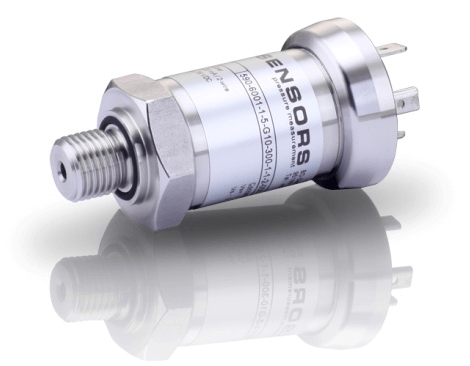

DMK 457 Pressure Transmitter

Brand: BD Sensors

The pressure transmitter DMK 457 with ceramic sensor has been designed for typical applications in shipbuilding and offshore constructions as alternative to our pressure transmitter DMP 457 with piezoresistive stainless steel sensor. In combination with the copper-nickel-alloy the DMK 457 is suitable for seawater, example level measurement in ballast tanks, etc.

Specifications

Brand

Approvals & Certifications

  • ABS
  • CCS
  • CE-Conformity
  • DNV
  • EMC: Emission & Immunity According to EN 61326, 2014/68/EU
  • Germanischer LLoyd (GL)
  • IBExU10-ATEX-1068 x for DX19-DMK 457, 2014/34/EU
  • IECEx IBE 12.0027X for DX19-DMK 457
  • LLOYD Register
  • REACH
  • RoHS
  • TÜV NORD

BSP Connection

  • G 1/2" Male
  • G 1/4" Male

Diaphragm Material

  • Ceramics Al₂O₃ 96%

Enclosure, Body Material

  • 316L Stainless Steel
  • CuNi10Fe1Mn (Copper Nickel)

Environmental Protection

  • IP65
  • IP67
  • IP68

NPT Connection

  • 1/2" NPT Male
  • 1/4" NPT Male

Output

  • 4-20 mA, 2-Wire

Pressure Range

  • bar: -1 to 600
  • kPa: -100 to 60,000
  • psi: -14.5 to 8,702

Pressure Type

  • Absolute
  • Gauge
