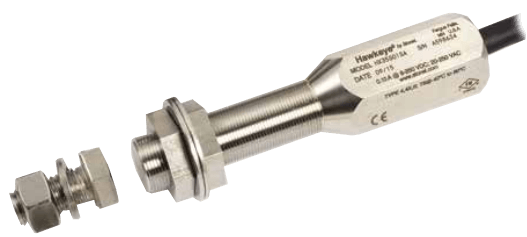

Hawkeye HX Explosion-Proof Linear Point Sensor
Brand: MetsoThe explosion proof Hawkeye, with its stainless steel enclosure, is designed for service in harsh process environments.
It features a solid state proximity sensor which is encased in a shock absorbent urethane potting material.
Features- 316 stainless steel enclosure
- Stainless steel washers and fasteners
- Solid state magnetic sensor detects
- Magnetic trigger is embedded
- Sensor electronics are urethane sealed
- All conduit/connector options (1/2" NPT, M20 and cable gland)
- No seal offs are required
- Suitable for most hazardous locations
Specifications
Brand
Approvals & Certifications
- CE
- CEC
- FM
- IEC
- NAMUR (EN 60947-5-6)
- NEC
Cable Length
- Wire: 5.90 feet (1.8 meters)
Conduit Connection
- 1/2" NPT Female
- M20 Female
Current
- Continuous: 0.1 A, Maximum
- Current Rating (Target Off): > 3 mA - NAMUR Sensor
- Current Rating (Target On): < 1 mA - NAMUR Sensor
- Inrush: 1 A, Maximum
- Leakage: 0.15 mA - Maximum
- Leakage: 0.25 mA - Maximum
Distance
- Sensing: 0.15" to 0.23" (4 to 6 mm)
Electrical Connectors
- 18 AWG Multi-Strand in a Single Jacket ITC & PLTC Rated
- Cable Gland
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- Explosion-proof (Ex D, Zone 1 or Class I & II, Division 1)
- Intrinsically Safe (Ex Ia, Zone 0 or Class I & II, Division 1)
- IP66
- IP67
- IP68
- NEMA 4
- NEMA 4X
- NEMA 6
Materials of Construction
- Fastener, Trigger: 316 Stainless Steel
- Magnetic Trigger: Corrosion Resistant Urethane
- Washers, Fastener: Stainless Steel
Metric Connection
- M12 x 1.75 Male
- M18 x 1 Male
Nut & Bolt Material
- Bolt: Stainless Steel
Operation
- Normally Closed (Solid State)
- Normally Open (Solid State)
Seat / Seal Material
- Seal: Urethane
Sensor, Probe Material
- Sensor: Stainless Steel Magnetic Solid State
Temperature Range
- -40° to 80° C (-40° to 176° F)
Voltage
- 20-250 Vac - Stainless Steel Switching Sensor
- 5-29 Vdc - NAMUR Sensor
- 8-250 Vdc - Stainless Steel Switching Sensor
Voltage Drop
- Maximum
