TFU006 Pressure Regulator
Brand: Burkert Fluid Control Systems
The water pressure regulator works on the principle of pressure reduction. It is preferably for use in the provided water systems. The pressure regulator consists of a housing, a piston or diaphragm valve with an adjustable spring and a spring cap. The inlet pressure reaches the target value, opens the piston or diaphragm against the spring force of the control valve and builds up the output pressure.
The output pressure is the controlled variable. When exceeding the nominal value the valve closes, when there is a shortfall the valve opens and thus the output pressure is kept almost constant. By changing the spring tension, the spring setpoint can be continuously adjusted.
Features- Brass version with DVGW and international drinking water approvals
- Stainless steel version with DVGW-Approval
- Compact plastic version
- Manometer port at pressure output
Specifications
Adjustment Type
- Setpoint: Ascending Pressure, Screw Can be Locked - Version IV
Approvals & Certifications
- ACS - Version I, Version II
- DVGW - Version I, Version II, Version III
- SVGW/SSIGE - Version I, Version II
- WRAS - Version I, Version II
BSP Connection
- G 1" Female
- G 1/2" Male
- G 1/4" Male
- G 1/8" Female
- G 2" Male
Diaphragm Material
- Special Roller: NBR
Enclosure, Body Material

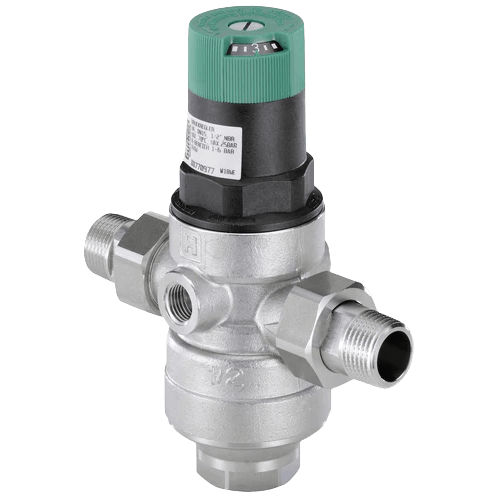

- AISI 303 Stainless Steel 1.4305 - Version III

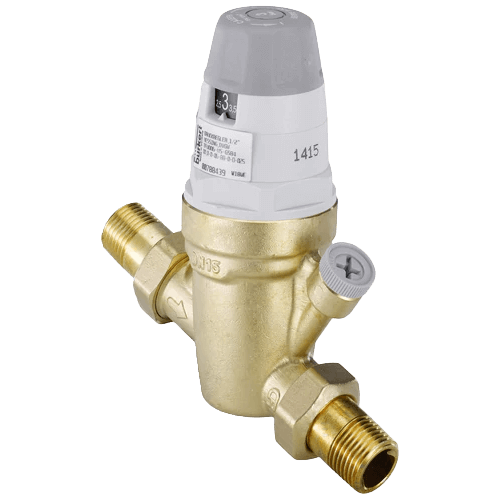

- Brass DZR (EN 12165 CW602N) - Version I, Version II
- Techno Polymer - Version IV
Flow Rate
- 1 to 2 m/sec - Version I, Version II, Version III
Materials of Construction

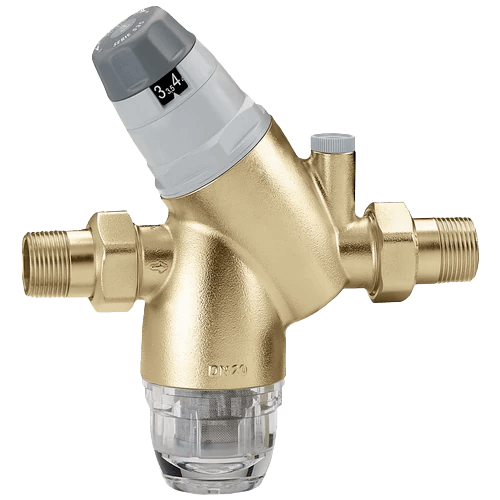

- Strainer Bowl: Stainless Steel - Version III
Media
- Water
Mounting
- Horizontal Direction, Strainer Bowl Downwards - Version III
- Horizontal or Vertical, Preferably Spring Cap Upright - Version I, Version II
Mounting Position
- Preferably Controller Handle Upright - Version IV
Operating Pressure
- psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12) - Version IV
Output Pressure
- Outlet - psi: 14.5 to 87 (kPa: 100 to 600, bar: 1 to 6) - Version I, Version II
- Outlet - psi: 21.7 to 87 (kPa: 150 to 600, bar: 1.5 to 6) - Version III
- Outlet (Continuously Adjustable) - psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12) - Version IV
Process Connection Material
- Brass - Version IV
Process Temperature
- 40° C (104° F) - Version II
- 50° C (122° F), Maximum
- 60° C (140° F) - Version I
- 70° C (158° F) - Version III
Seat / Seal Material
- Seal: NBR - Version I, Version II, Version III
- Valve Seat - AISI 304 Stainless Steel - Version I, Version II
- Valve Seat: Stainless Steel - Version III
Supply Pressure
- Inlet - psi: 190 (kPa: 1,310, bar: 13) - Version IV
- Inlet - psi: 362 (kPa: 2,500, bar: 25) - Version I, Version II, Version III
Supply Pressure - Maximum
- bar: 13 to 25
- kPa: 1,310 to 2,500
- psi: 190 to 362
Valve Type
- Single Seat Valve, Relieved - Version I, Version II, Version III
