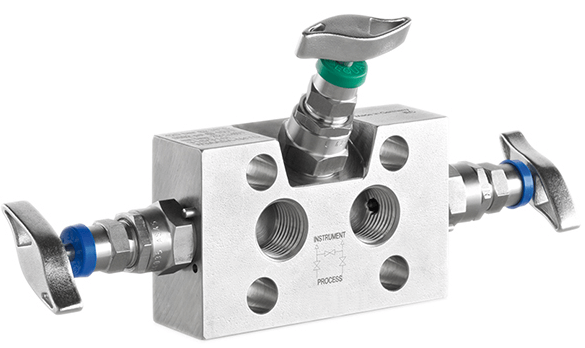

V02 Series Direct & Remote Mount 3-Valve Manifold
Part Number: V02 SERIES DIRECT AND REMOTE MOUNT 3-VALVE MANIFOLD Brand: Ashcroft Inc.Price
Request a Quote
Stock
Out of Stock
The Ashcroft V02 direct & remote mount 3 valve manifolds are designed to isolate the instrument and equalize the pressure during process shut downs and maintenance.
Features- 3-valve manifolds Isolates each port and equalizes pressure for instrument maintenance
- 316L stainless steel construction
- Support mounting brackets available
- PTFE packing (other materials available upon request)
- Color-coded dust caps prevent dust ingress and identifies handle function
- Stem with cold rolled surface, back seat and non-rotating needle tip
- Supplied with wetted parts according to NACE MR0175/MR0103
- Material Traceability Reports available per EN 10204 3.1
Specifications
Brand
Applications
- Cement Plants
- Chemical Industry
- Oil & Gas Applications
- Power Plants
- Seawater Desalination Plants
- Steel Mills
- Waste Incineration Plants
Approvals & Certifications
- Hydrostatic Pressure Test
- Material Test Report as Per EN 10204 3.1
Bonnet Material
- 316 Stainless Steel
Enclosure, Body Material
- 316L Stainless Steel
Gland Nut Material
- 304 Stainless Steel
Handle Assembly Material
- T-Handle: Stainless Steel
Instrument Connection
- Remote Mount: 1/2" NPT Female
Mounting
- Direct Mounting: IEC, Typical A
- Mounting Bracket
- Remote Mounting: 1/2" NPT Female
NACE & NIST
- NACE MR-0175, MR0103
Name Plate, Tag Material
- Stainless Steel
NPT Inlet
- 1/2" NPT Female
NPT Outlet
- 1/2" NPT Female
Packing Material
- PTFE up to 200° C (392° F)
Pressure Rating
- Maximum
Special Cleaning & Packaging
- Cleaned for Oxygen Service
Stem Material
- Valve Stem: 316L Stainless Steel
Temperature Range
- PTFE: 200° C (392° F), Maximum
Valves
- 3
Wetted Materials
- Needle Tip: 316Ti Stainless Steel
