Coupling
Brand: MetsoCouplings are designed for use with hoses, bends and rubber lined steel pipes for slurry handling in heavy wear applications.

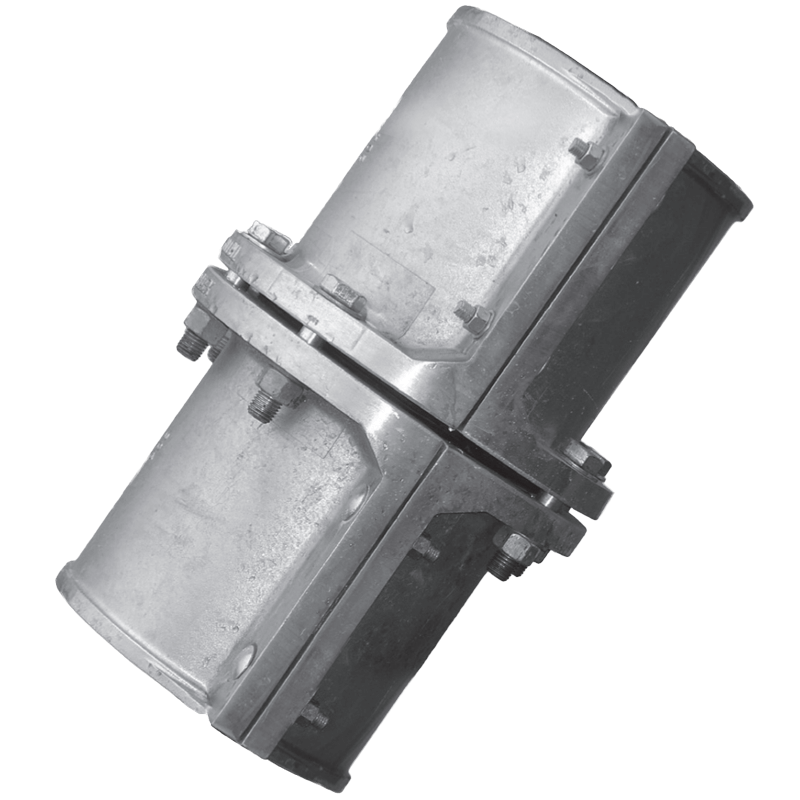

Trellex split flange couplings are made of high strength Aluminum alloys.
They consist of two or four identical segments which are mounted mechanically on the smooth hose.
Specifications
Brand
Enclosure, Body Material
- Aluminum Alloy
Flange Size - 10" (DN250)
- 10" (DN250) - 150# (ASME B16.5)
- 10" (DN250) - PN 10 (DIN 2501)
Flange Size - 12" (DN300)
- 12" (DN300) - 150# (ASME B16.5)
- 12" (DN300) - PN 10 (DIN 2501)
Flange Size - 14" (DN350)
- 14" (DN350) - 150# (ASME B16.5)
- 14" (DN350) - PN 10 (DIN 2501)
Flange Size - 16" (DN400)
- 16" (DN400) - 150# (ASME B16.5)
- 16" (DN400) - PN 10 (DIN 2501)
Flange Size - 18" (DN450)
- 18" (DN450) - 150# (ASME B16.5)
- 18" (DN450) - PN 10 (DIN 2501)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME B16.5)
- 2" (DN50) - PN 10 (DIN 2501)
Flange Size - 20" (DN500)
- 20" (DN500) - 150# (ASME B16.5)
- 20" (DN500) - PN 10 (DIN 2501)
Flange Size - 24" (DN600)
- 24" (DN600) - 150# (ASME B16.5)
- 24" (DN600) - PN 10 (DIN 2501)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME B16.5)
- 3" (DN80) - PN 10 (DIN 2501)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME B16.5)
- 4" (DN100) - PN 10 (DIN 2501)
Flange Size - 5" (DN125)
- 5" (DN125) - 150# (ASME B16.5)
- 5" (DN125) - PN 10 (DIN 2501)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME B16.5)
- 6" (DN150) - PN 10 (DIN 2501)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME B16.5)
- 8" (DN200) - PN 10 (DIN 2501)
Operating Pressure
- psi: 75 to 150 (kPa: 500 to 1,000, bar: 5 to 10)
Process Connection Material
- Pipe: Rubber Lined Steel
