BD Sensors Digital Pressure Gauge, BAROLI 05
Images are representations only.

BAROLI 05-Digital Pressure Gauge

Brand: BD Sensors
Request Information

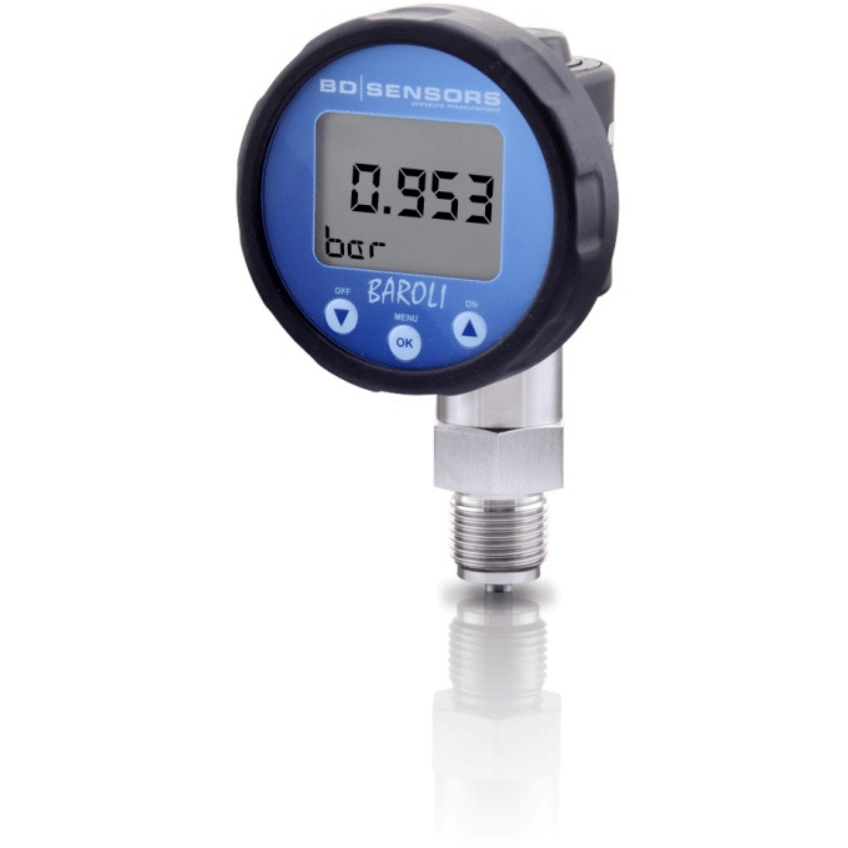

The battery-powered digital pressure gauge BAROLI 05 has been designed for measuring the pressure (absolute or gauge) of fluids, oils and gases. The display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying minimum / maximum values, calibrating the offset and of span, as well as configuring the automatic switching-off complete the profile.
Features
  • Nominal pressure from psi: 0 to 8,701.8 (kPa: 0 to 60,000), bar: 0 to 600)
  • Rotatable housing
  • 2-line LC display 4.5-digit 7-segment display 6-digit 14-segment additional display
  • Different mechanical connections: inch, NPT threads

    • Specifications

    Brand

    Approvals & Certifications

    • CE
    • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
    • PED: 2014/68/EU
    • REACH
    • RoHS

    BSP Connection

    • G 1/2" (EN 837)
    • G 1/4" (EN 837)

    Enclosure, Body Material

    • 316L Stainless Steel, 1.4401
    • Display Housing: PA 6.6
    • Display Housing: Polycarbonate

    Environmental Protection

    • IP65

    NPT Connection

    • 1/2" NPT
    • 1/4" NPT

    Pressure Range

    • bar: 0 to 600
    • kPa: 0 to 60,000
    • psi: 0 to 8,700

    Pressure Type

    • Absolute
    • Gauge
