Emerson Appleton Sealed Interlocked Switched Receptacle, ID2SR
Images are representations only.

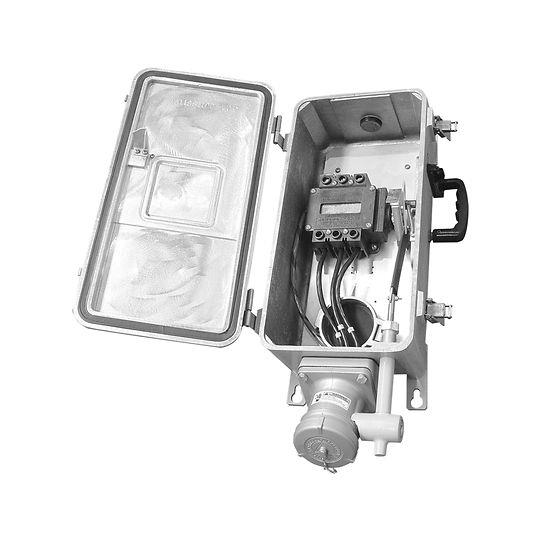

Appleton™ ID2SR Factory Sealed Interlocked Switched Receptacles

Brand: Appleton

ID2SR Factory Sealed Interlocked Switched Receptacles are designed to provide short circuit protection and are available in 30, 60 and 100 Amp versions. They are typically used for applications that require portable or fixed heavy duty equipment in hazardous, damp and corrosive environments. A special polarization option prevents the insertion of a plug into a receptacle or connector that is wired for a different voltage.
Features
  • Positive polarization; only plugs of the same style, number of poles, and amperage rating may be used with these receptacles.

  • Safety Interlock mechanism. Plug must be inserted into the receptacle before the switch can be turned on. Plug cannot be withdrawn unless the switch is in the OFF position.

  • Available in unfused versions only.

  • Removable hinged cover allows for ease of installation and maintenance.

  • Short circuit withstand rated to 10,000 RMS Symmetrical Amperes (Unfused).

  • Rugged cast aluminum operating handle can be locked in the OFF position with provision to lock in the ON position. Cover can be padlocked closed.

  • Style 2 (shell and extra pole) grounding.

  • Stainless steel key-hole mounting feet for easy installation.

  • Accommodates #8 – #4/0 AWG copper wire.

  • Unit is equipped with defeatable door interlock which allows emergency access when switch is energized.

  • Certified for use with Appleton ACP plugs.

    • Specifications

    Brand

    Amperage

    • 30, 60 or 100 A

    Hazardous Area Classification

    • Class I, Division 2, Groups B, C, D, Class II, Division 1, & 2, Groups F, G, Class III, CSA Typical 3, 3R, 4, 4X, 9FG, 12

    Horsepower Ratings

    • 3, 7.5, 10, 20 or 50

    Materials & Finishes

    • Enclosure is Copperfree (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat. Operating Handle is Cast Aluminum. Stainless Steel Hardware & Cover Latches.

    Number of Poles

    • 3 or 4

    Number of Wires

    • 2 or 3

    Plug Cable Diameter

    • .500 - 1.250, .500 - 1.375 or .875 - 1.906"

    Voltage

    • 240 Vac or 600 Vac
