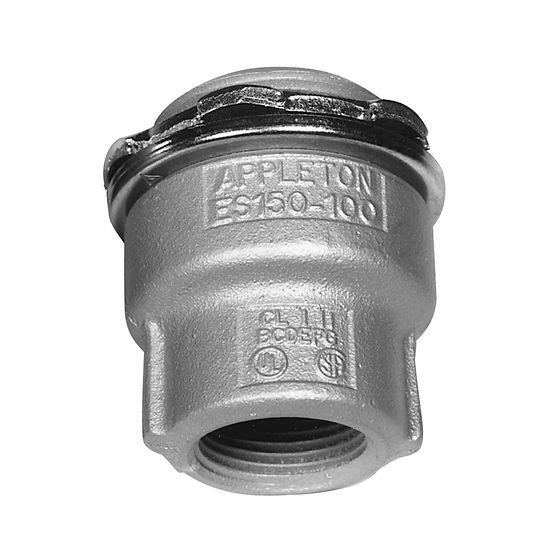

Appleton™ ES 25% Sealing Hubs

Brand: Appleton
Request Information

Appleton™ ES 25% fill explosionproof and dust-ignitionproof sealing hubs are used to seal vertical conduit risers at switch gear and motor control centers, sheet metal structures, or cast boxes and enclosures. They can be used as a male thread enlarger or conduit hub in an ordinary location.
Features
  • Explosionproof, dust-ignitionproof.

  • Smooth, rounded integral bushing in each hub protects conductor insulation.

  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity.

  • Allows up to 25% conduit fill in compliance with the National Electrical Code.

  • UL Listed for use with Kwiko™ A Sealing Compound. Also listed with certain competitors sealing cement, contact factory for details.

    • Specifications

    Brand

    NEC/CEC Certifications & Compliances

    • Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III

    Options

    • To Provide A Water & Oil-tight Connection, Sealing Gaskets & Locknuts are available (add Suffix -BLSG)

    Standard Material & Finishes

    • Malleable Iron with Triple-coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
