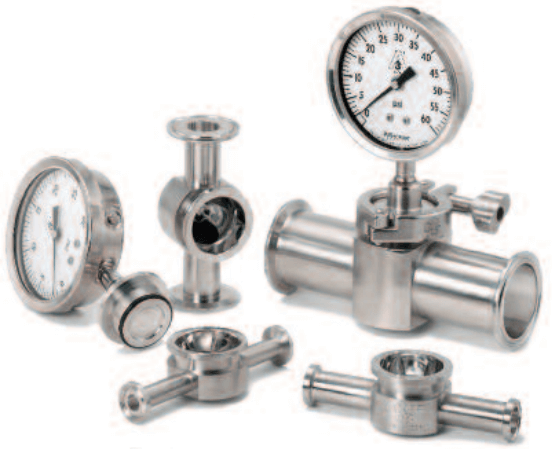

The Ashcroft 1036 inline sanitary gauge satisfies stringent sanitary requirements with its unique design.
Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized.
An ideal product for reliability and process integrity.
Features- All-welded stainless steel wetted surfaces
- Field liquid-fillable gauge case
- True zero pointer indication
- PowerFlex movement for extended life
- Easy Zero external pointer adjustment standard
- Retrofits Anderson Instrument CPM design
Specifications
Brand
Accuracy
- 1.5% of Full Scale for Pressure Ranges 100 psi & above
- 2% of Full Scale for Vacuum, Compound & Ranges Below 100 psi
Applications
- Biotechnology
- Filtration Systems
- Food & Dairy
- Medical Equipment
- OEM Equipment
- Pharmaceuticals
Approvals & Certifications
- 3A Sanitary 74
- ISO 9001
Diaphragm Material
- 316L Stainless Steel, Electro-Polished 12 to 20 RA
Enclosure, Body Material
- 304 Series Stainless Steel
Fill Material
- System: USP Food Grade Glycerin
Lens
- Window: Polycarbonate Lens
- Window: Polysulfone
Materials of Construction
- Bourdon Tube & Socket: 316L Stainless Steel
- Pointer: Black-Painted Aluminum with External Zero Adjust
Movement
- 300 Series Stainless Steel
O-Ring Material
- Diaphragm O-Ring: Buna-N
- Diaphragm O-Ring: Viton
Pressure Range
- bar: 1 to 41.3
- kPa: 103.4 to 4,137
- psi: 15 to 600
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Ring Material
- 304 Series Stainless Steel (Bayonet, Removable)
Size
- Dial: 3.5" (89 mm)
Temperature Range
- Autoclave or Sterilize: 149° C (300° F) when Supplied with Polysulfone Window
- Clean or Steam in Place (CIP or SIP): 138° C (200° F)
Tri-Clamp Connection
- 1-1/2" Sanitary Clamp
