Redapt Male to Male (Exd) Adaptor, AMD Series
Images are representations only.

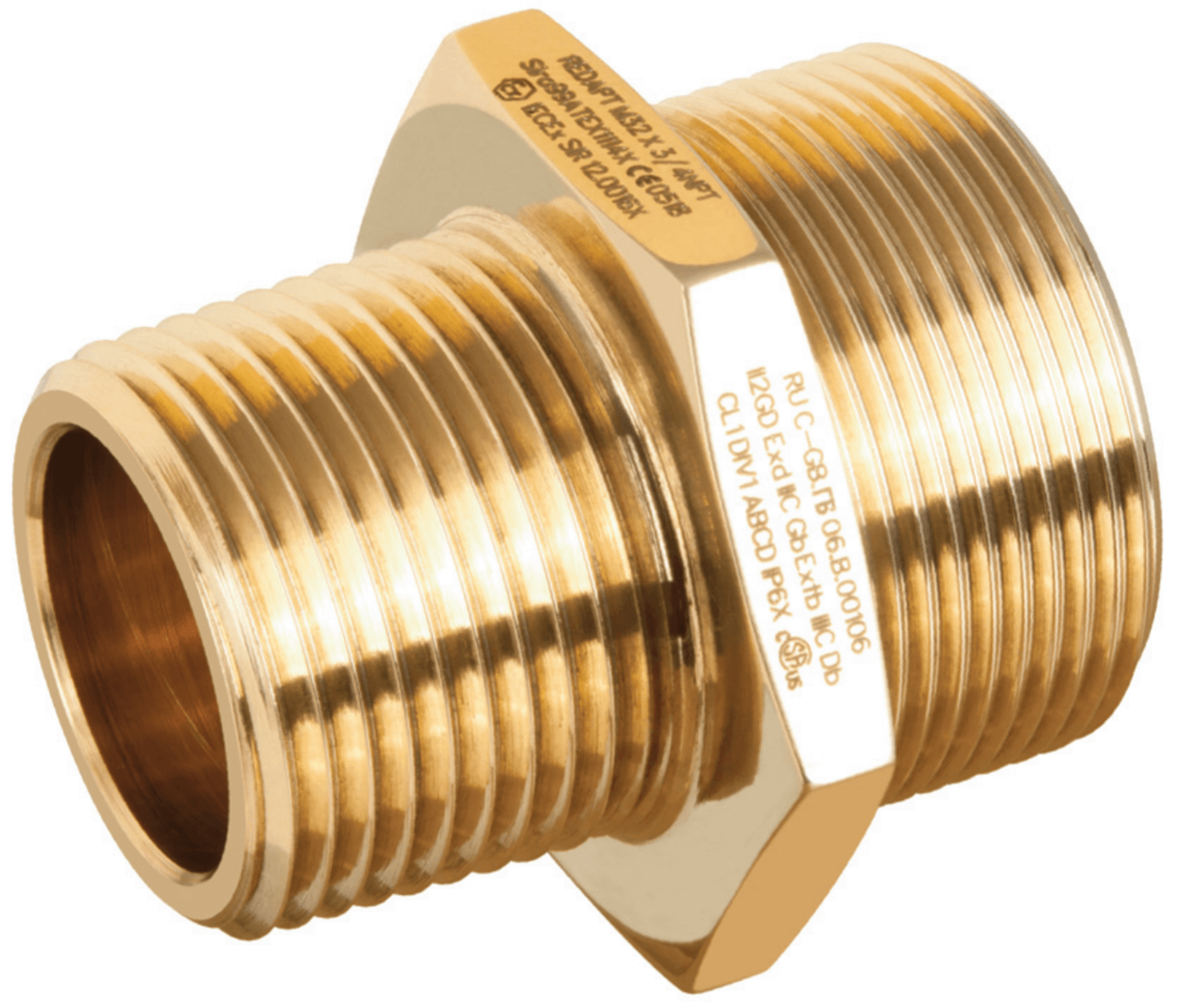

AMD Series Male to Male (Exd) Adaptor

Brand: Eaton Corporation
Request Information
Favorite

Redapt AM-D Series of Male x Male Adaptors provide a method of matching female threadforms of the same size or of a dissimilar size and or threadform.
Features
  • International Ex approvals
  • IP64, CSA Enclosure Type (NEMA) 3
  • Available in brass and stainless steel
  • Various threadforms available
    • Benefits:
  • Provides method of connecting female threadforms
  • Connects either matching or dissimilar sizes/threadforms
  • Maintains Ex certification

    • Specifications

    Brand

    Approvals & Certifications

    • ATEX: II 2 GD, Ex D IIC Gb, Ex Tb IIIC Db IP6X, EN 60079-0, EN 60079-1, EN 60079-31, Sira 99-ATEX-1114X
    • CE 0518
    • CSA: Ex D IIC IP54, Class I, Division 1 & 2, Grade A, B, C, D, Class II, Groups E, F, G, Class III, Enclosure Typical 3, C22.2 No. 30-M1986 (R2012), CAN/CSA 60079-0-11, CAN/CSA 60079-1-11, CAN/CSA 60079-31:12, UL1203-5th Edition, 1248014 (LR 106084)
    • Ex
    • GOST: ExdIICU, TR RU C-GB.GB06.B.00106
    • IECEx: Ex D IIC Gb, Ex Tb IIIC Db IP6X, IEC 60079-0, IEC 60079-1, IEC 60079-31, IECEx SIR 12.0016X
    • UL 1203

    Environmental Protection

    • IP54
    • IP64
    • IP66
    • IP68
    • NEMA 3

    Materials of Construction

    • 316 Stainless Steel
    • Brass CZ121
    • Plating: Electroless Nickel
    • Plating: Zinc

    Metric Connection

    • M16 Male
    • M20 Male
    • M25 Male
    • M32 Male
    • M40 Male
    • M50 Male
    • M63 Male
    • M75 Male

    Temperature Range

    • -50° to 180° C (-58° to 356° F)
