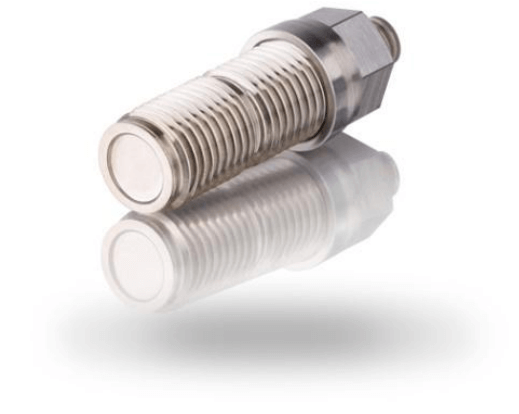

BD Sensors Piezoelectric Pressure Sensor, DAC 102
Images are representations only.

DAC 102 Piezoelectric Pressure Sensor

Brand: BD Sensors
Request Information
Favorite

The many-sided sensor was developed for dynamic and quasistatic pressure monitoring psi: 0 to 3,626 (kPa: 0 to 25,000, bar: 0 to 250) The sensor element with Crystal Match technology enables exceptional signal detection across the entire temperature range. The monocrystalline GaPO₄ sensor element allows constant sensitivity and thus ensures excellent performance at high temperatures.
Features
  • High output signal
  • Internal heat-conducting elements for high thermal capacity
  • High linearity across the whole pressure and temperature range
  • High temperature resistance 400° C (752° F)
  • Constant sensitivity across the entire service life

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Enclosure, Body Material

    • Stainless Steel

    Pressure Range

    • bar: 0 to 250
    • kPa: 0 to 25,000
    • psi: 0 to 3,626
