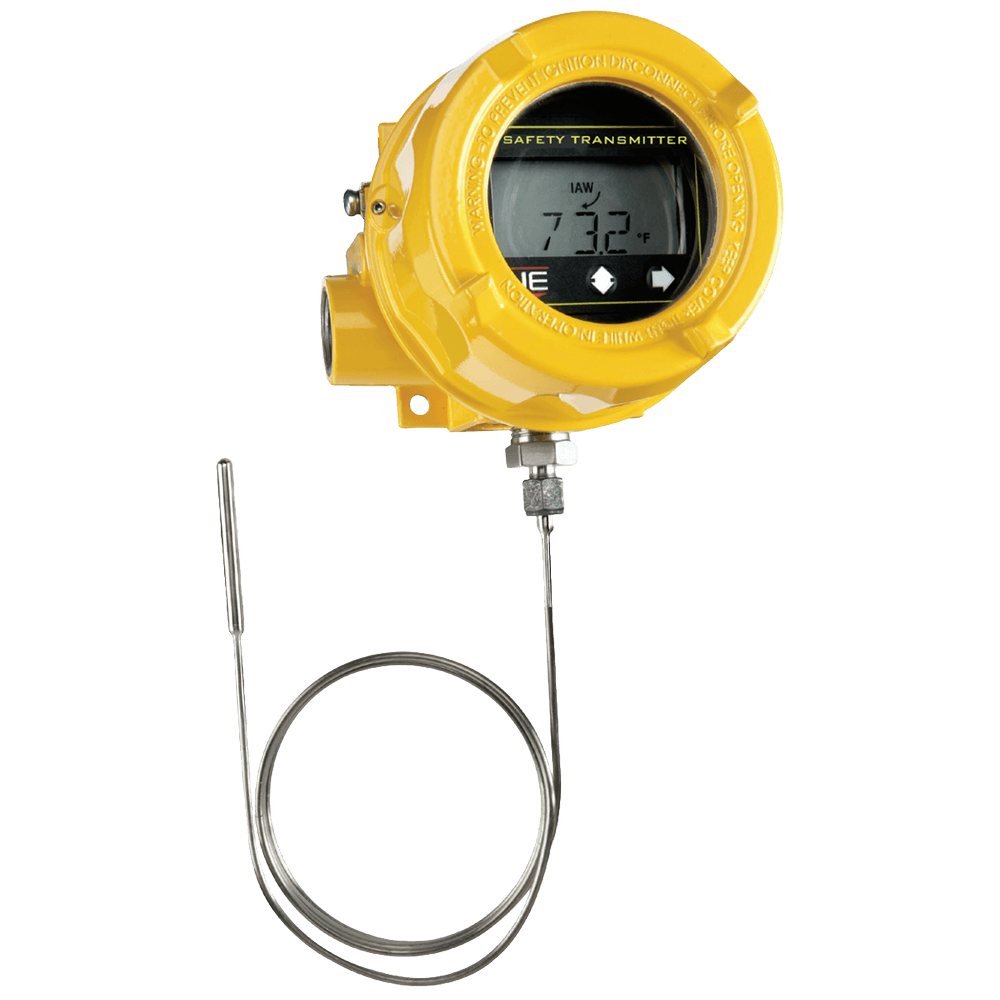

One Series Type 2SLP47 Models TRx/THx/TCx Remote Temperature Transmitter
Brand: United Electric Controls Ltd.The One Series Safety Transmitter is a transmitter-switch for monitoring pressure or temperature and meets the requirements of SIL 2 for random integrity at HFT = 0, SIL 3 for random integrity at HFT = 1 and SIL 3 for systematic capability. The One Series Safety Transmitter provides an explosion-proof type 4X/IP 66, weather-tight enclosure suitable for harsh environments and hazardous (Class I, Division 1, Zone 1) locations and allowing the One Series Safety Transmitter to be mounted outside. Repeatability of 0.1% of maximum range rivals transmitters that cost much more than the One Series Safety Transmitter. Combined, these features provide an extremely accurate Safety Relay Output (SRO) set point that will not drift over time.
Features- Digital process display
- Programmable set point and deadband
- Self-diagnostic solid-state digital electronics
- Plug port detection
- Adjustable nuisance trip dampening
- Configurable IAW self-diagnostics
- Min/Max process values memory
Specifications
Accuracy
- 0.5% of Full Range Span
Ambient Temperature Range
- -40° to 70° C (-40° to 158° F)
Applications
- Filter Monitoring
- Hydraulic Oil Pressure
- Lubricating Oil Monitoring
- Pumps & Compressors
Approvals & Certifications
- Emission: EN 61000-6-4 Class A, Immunity: EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3 (Continuous Radiated Disturbances), EN 61000-4-4 (Electrical Fast Transients), EN 61000-4-5 (Surges), EN 61000-4-6 (Continuous Conducted Disturbances), EN 61000
- FMEDA
- FS
- ISO 9001
- KCS
- SIL 2,3 Certification
Approvals & Certifications
- ATEX CE: EN 61000-6-2, EN 61000-6-4
- CRN
- IEC 61508:2010
- IEC Ex
- INMETRO
- NAMUR NE 43
- RoHS
- TS
- UL (C,US)
Circuit Protection
- EMI/RFI Immunity
Communication
- HART
Compensated Temperature
- -20° to 50° C (-4° to 122° F)
Conduit Connection
- 3/4" NPT Female Aluminum Casting
Cover Material
- Polyester Painted Aluminum with Tempered Glass Insert
Display
- 4-Digit x 0.5" (12.7 mm) Backlit LCD
Electrical Rating
- 12-250 Vac at 5 mA to 5 A
Enclosure Finish
- Epoxy Powder-Coated
Enclosure, Body Material
- 360 Aluminum Alloy
Environmental Protection
- Explosion-proof
- Flameproof
- IP66
- NEMA 4X
Fill Material
- Epoxy
- Powder
Input
- Power Input: 4-20 mA Loop Powered (20-40 Vdc)
Length
- Extension Length: 1 to 30 feet (0.3 to 9.14 meters)
Materials of Construction
- Sheath: 316 Stainless Steel
Mounting
- Pipe Mounting Bracket
- Wall Mounting Bracket
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male (Compression Fitting, Union Connector)
Operating Temperature
- -40° to 70° C (-40° to 158° F)
- Display Operating Temperature Range: -12° to 70° C (10° to 158° F)
Output
- 24 Vdc, 360 ohms, Maximum
- Analog Signal & IAW Status Output: 4-20 mA
Output Format
- Switch Output
Process Temperature
- -200° to 593° C (-328° to 1,100° F)
Repeatability
- 0.1% of Full Range Span
Response Time
- Display Response Time: 400 milliseconds (2.5 Hz)
- Switch Response Time: ≤ 100 milliseconds for Detection of Full Step Change & Change of Output State, Filter Feature Off
Rotation
- Display can be Rotated up to 180° Both Directions
Sensor, Probe Connection
- 4-Wire
Sensor, Probe Type
- 100 ohms, 4-Wire Platinum RTD
Service
- Oxygen Cleaning Service
Shock
- 15 G, 10 milliseconds Duration
- 40 G, 6 milliseconds
- MIL-STD-810 G, Effect <± 0.40% of Range
Stability
- Long Term Stability: ± 0.25% of Range Per Year, Maximum
Thermal Drift
- 0.03% of Full Scale / °C
Vibration
- 5 G at 10 to 1,000 Hz
Vibration Effect
- <± 0.40% of Range
Wetted Materials
- 316 Stainless Steel
