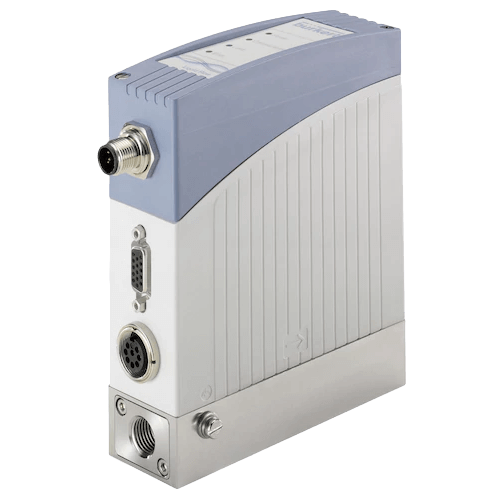

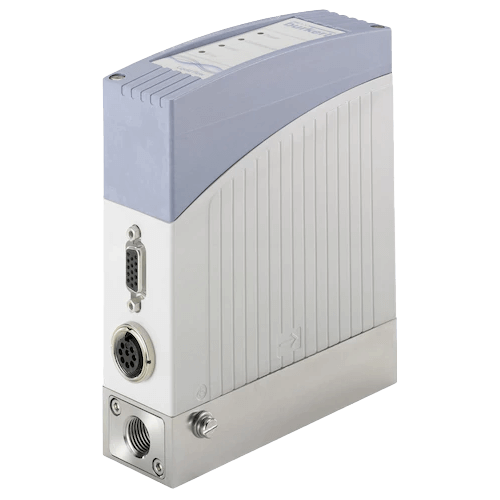

8719 Liquid Flow Controller
Brand: Burkert Fluid Control Systems
Type 8719 is an instrument for liquid flow control in process technology. The measured value provided by the sensor will be compared in the digital control electronics with the predefi ned set point according to the signal; if a control difference is present, the control value output to the proportional valve will be modified using a PI-control algorithm.
In this way, the flow can be maintained at a fixed value or a predefined profile can be followed, regardless of pressure changes or other disturbances in the system. As a control element, a proportional valve working at low friction guarantees the high sensitivity and good control characteristics of the unit. MassFlowCommunicator software can be used for parameterisation and diagnosis.
Specifications
Accuracy
- ± 0.5% of Full Scale
- ± 1.5% of Reading
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Applications
- Bio Reactors
- Fuel Cell Technology
- Heat Treatment
- Machine Tools
- Material Coatings
- Packaging Technology
BSP Connection
- G 1/4" Female
- G 1/8" Female
Communication
- DeviceNet Bus
- Digital
- Fieldbus, CAN Open
- Profibus DP
Consumption
- Power Consumption: 10 W with Fieldbus Version
- Power Consumption: 7.5 W
Electrical Connectors
- 5-Pin M12, Socket or Plug with Fieldbus
- 8-Pin Round Connector Socket
- D-Sub 15-Pin Connector
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- PBT
- Stainless Steel
Environmental Protection
- Protection Class: IP65
Flow Rate
- Full Scale Range: 0.015 to 0.6 LPM Water
- Full Scale Range: 0.9 to 36 I/h
Indication

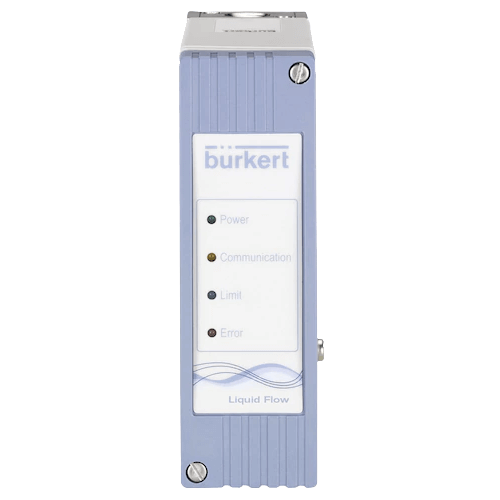

- LED Indication for Power, Communication, Limit & Error
Input Impedance
- 20 KiloOhms (Voltage)
Input Signal
- 0-10 V
- 0-20 mA
- 0-5 V
- 4-20 mA
Media
- Clean & Low Viscous Liquids
- Water
Mounting Position
- Horizontal
- Vertical
NPT Connection
- 1/4" NPT Female
- 1/8" NPT Female
Operating Pressure
- Maximum
- Typical, Maximum
Operating Voltages
- 24 Vdc ± 10%
Output
- 0-10 V, Actual Value
- 0-20 mA (Actual Value)
- 0-5 V, Actual Value
- 4-20 mA (Actual Value)
- Burden Current Output: 600 ohms, Maximum
- Maximum
Process Temperature
- 10° to 40° C (50° to 104° F)
Relay Output
- Two Relay Outputs: 1 A at 60 V, 60 VA
Repeatability
- ± 0.5% of Full Scale
Response Time
- Settling Time (t95%): < 500 milliseconds
Seat / Seal Material
- Seal: EPDM
- Seal: FFKM
- Seal: FKM
Sensor Circuit
- Residual Ripple: < 2%
Sensor, Probe Type
- Differential Pressure
Turndown
- 1:10
Viscosity
- 0.4 to 4 cSt
