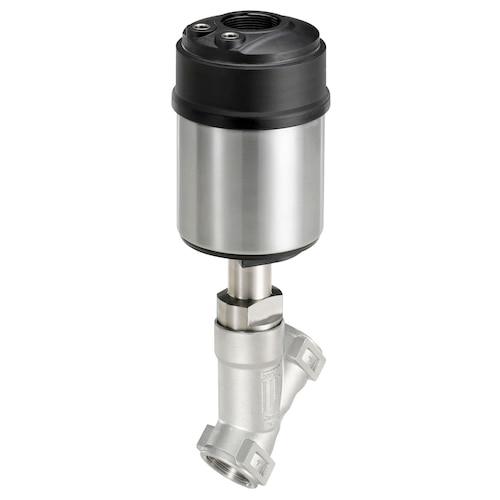

Type 2300 Pneumatically Operated 2-Way Angle Seat Control Valve Element
Brand: Burkert Fluid Control SystemsIn line with Bürkert’s philosophy for modular valves and sensors the construction of Type 2300 angle-seat valve fulfils tough criteria for process environments. Unrivalled cycle life and sealing integrity is guaranteed by the proven self adjusting packing gland. The parabolic trim results in a flow characteristic approximately 35% larger than conventional control valves.
It is available in either stainless steel on stainless steel or with a durable PTFE seal for tight shut-off. The design enables the easy integration of automation modules whether they are digital electropneumatic positioner or process controller. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67, NEMA Type 4X protection class and superior chemical resistance. This system has been engineered for reliable accurate control in applications where high flow rate is an advantage.
Features- Excellent combination of good control characteristic and high flow rate
- Long service life
- Control units can be mounted directly without external tubing
- Stainless steel housing with thread, clamp and weld end connection
Documentation
Document
- Bedienungsanleitung Typ 2300 2 2 Wege Schr gsitzregelventil DE pdf 1.7 MB
- EU DoC EU Declaration pdf 2.2 MB
- Quickstart Typ 2300 2 2 WegeSchr gsitzregelventil DE pdf 1.6 MB
- Quickstart Type 2300 2 2 way angle seat control valve EN pdf 1.6 MB
- Quickstart Type 2300 Vanne de r glage si ge inclin 2 2voies FR pdf 1.6 MB
