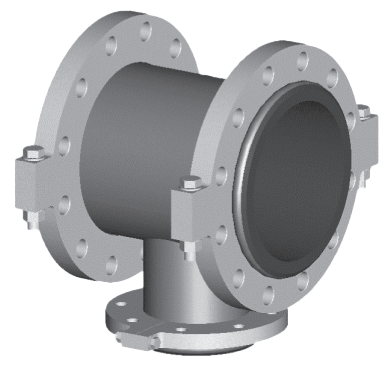

T90 Branch Pipe
Brand: MetsoBranch pipes are used in the mining processing industry, coal refinement plants, power plants in the steel and cement industries and other applications where high wear resistance is required.
Trellex Branch Pipes T90 are lined with a natural rubber of Trellex T50.
Specifications
Brand
Applications
- Cement Industries
- Coal Refinement Plants
- Mining Processing Industry
- Power Plants
Enclosure, Body Material
- Rubber
Flange Material
- Steel
Flange Size - 10" (DN250)
- 10" (DN250) - 150# (ASME B16.5)
- 10" (DN250) - PN 10 (DIN 2501)
Flange Size - 12" (DN300)
- 12" (DN300) - 150# (ASME B16.5)
- 12" (DN300) - PN 10 (DIN 2501)
Flange Size - 14" (DN350)
- 14" (DN350) - 150# (ASME B16.5)
- 14" (DN350) - PN 10 (DIN 2501)
Flange Size - 16" (DN400)
- 16" (DN400) - 150# (ASME B16.5)
- 16" (DN400) - PN 10 (DIN 2501)
Flange Size - 18" (DN450)
- 18" (DN450) - 150# (ASME B16.5)
- 18" (DN450) - PN 10 (DIN 2501)
Flange Size - 20" (DN500)
- 20" (DN500) - 150# (ASME B16.5)
- 20" (DN500) - PN 10 (DIN 2501)
Flange Size - 24" (DN600)
- 24" (DN600) - 150# (ASME B16.5)
- 24" (DN600) - PN 10 (DIN 2501)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME B16.5)
- 4" (DN100) - PN 10 (DIN 2501)
Flange Size - 5" (DN125)
- 5" (DN125) - 150# (ASME B16.5)
- 5" (DN125) - PN 10 (DIN 2501)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME B16.5)
- 6" (DN150) - PN 10 (DIN 2501)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME B16.5)
- 8" (DN200) - PN 10 (DIN 2501)
Gasket Material
- Rubber
Operating Pressure
- psi: 72 to 145 (kPa: 500 to 1,000, bar: 5 to 10)
Process Connection Material
- Pipe: Rigid Steel
Proof Pressure
- 1.5 times Working Pressure
