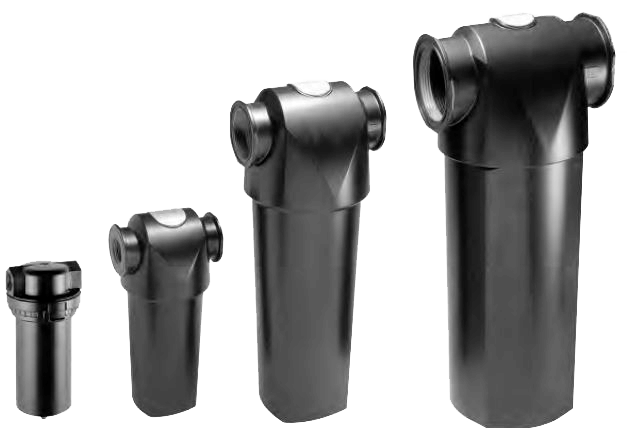

WSA/WSO Liquid Separator
Brand: Wilkerson CorporationOur unique design combines the techniques of centrifugal action and other mechanical separation principles (Impingement, Separation, Laminar Flow and Stokes Law) to remove large quantities of liquid and solid contamination.
Features- High Flow Rates
- Less than 1 PSIG Differential Pressure
- Lightweight Cast Aluminum Housing with 1" to 3" NPT Connections (WS0)
- Cast Zinc Housings with 1/4" to 1" NPT Connections (WSA)
- External Surfaces Epoxy Painted for Maximum Corrosion Protection
- Standard Equipped with Quick Disconnect Bowls for Ease of Service (WSA)
- Three (3) Optional Automatic Drains Available
Displaying prices & availability for Ohio, United States 43201 in USD. Change location.
Models matching criteria: 14
1/4" In / Out NPT Pipe Connection, Rated Flow 25 SCFM @ 100 psig, Models Have Petcock. view more
*1 PSID maximum differential.
Out of Stock
3/8" In / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig, Models Have Petcock view more
*1 PSID maximum differential.
Out of Stock
1/4" In / Out NPT Pipe Connection, Rated Flow 25 SCFM @ 100 psig view more
*1 PSID maximum differential.
Out of Stock
3/8" In / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig
Out of Stock
1/2" In / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig, Models Have Petcock
Out of Stock
1/2" In / Out NPT Pipe Connection, Rated Flow 50 SCFM @ 100 psig
Out of Stock
3/4" In / Out NPT Pipe Connection, Rated Flow 100 SCFM @ 100 psig
Out of Stock
3/4" In / Out NPT Pipe Connection, Rated Flow 100 SCFM @ 100 psig, Models Have Petcock
Out of Stock
1" In / Out NPT Pipe Connection, Rated Flow 120 SCFM @ 100 psig, Models Have Petcock
Out of Stock
1" In / Out NPT Pipe Connection, Rated Flow 120 SCFM @ 100 psig
Out of Stock
1" In / Out NPT Pipe Connection, Rated Flow 233 SCFM @ 100 psig
Out of Stock
1-1/2" In / Out NPT Pipe Connection, Rated Flow 742 SCFM @ 100 psig
Out of Stock
2" In / Out NPT Pipe Connection, Rated Flow 742 SCFM @ 100 psig
Out of Stock
3" In / Out NPT Pipe Connection, Rated Flow 1,700 SCFM @ 100 psig
Out of Stock
Specifications
Maximum Operating Pressure
- WSA: 200 PSIG (13.8 bar)
- WSO: 232 PSIG (16.0 bar)
Operating Temperature
- WSA: 32° to 150° F (0° to 65.5° C)
- WSO: 35° to 176° F (1.6° to 80° C)
Pressure Differential at Rated Flow
- 1.0 PSID (0.07 bar)
