Emerson Appleton Cable Gland, PX2K-REX Series
Images are representations only.

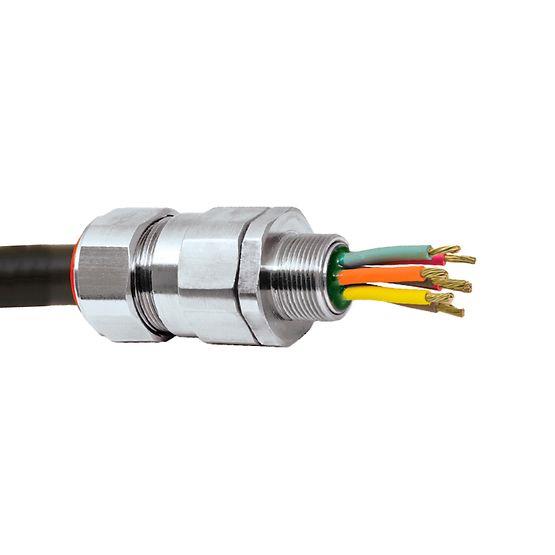

Appleton™ PX2K-REX Series Liquid Resin Barrier Type Cable Glands

Brand: Appleton
Request Information
Favorite

Appleton™ PX2K-REX Series Liquid Resin Barrier Type Cable Glands are suitable for all types of armored cables (braid, tape, wire and lead sheath version) certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC, Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust. The gland utilizes a liquid pour resin seal, that vastly reduces installation time and associated costs. This solution is particularly effective on multicore cables where traditional compound is difficult and time consuming to apply.
Features
  • Utilizes RapidEx high speed liquid resin sealing compound included with each gland.

  • Connector provides an environmental seal on the cable outer jacket and an explosionproof liquid resin barrier seal around the cable inner cores.

  • Connector provides mechanical cable retention and electrical continuity via armor termination.

  • PX2K forms part of a comprehensive connector range for marine shipboard and IEE45 armored and jacketed cables.

  • Sealing technique: LRS outer seal (load retention seal).

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2, Zone 20, Ex D IIC, Ex E IIC, Ex NR II, Ex Ta IIIC, IP66, IP67, IP68

    Cable Gland Accessories

    • Shroud, Locknut, Earth Tag, Entry Thread Seal, Serrated Washers, Adaptors & Reducers

    Compound Material

    • High Speed Liquid Resin

    Gland Material

    • Brass Fully Nickel-Plated

    NEC/CEC Certifications & Compliances

    • Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2, Class I, Zone 1 & 2 - 21 & 22, NEMA 4X, IP66, IP67, IP68

    Optional Material

    • Aluminum (replace Last Digit 5 with 1 or 316L Stainless Steel (replace Last Digit 5 with 4)

    Seal Material

    • LSF (Low Smoke Fume) Halogen Free ThermoPlastic Elastomer
