Redapt Metallic Dome Head (Exde) Stopping Plug, PDU Series
Images are representations only.

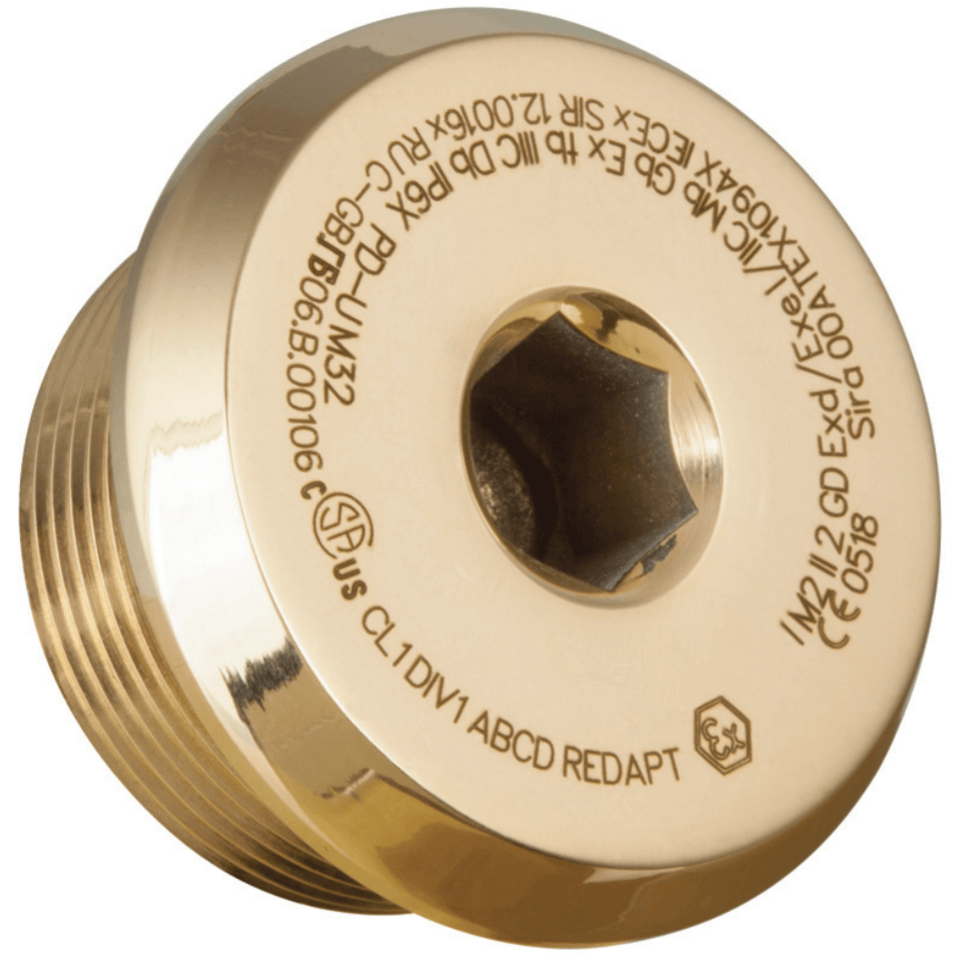

PDU Series Metallic Dome Head (Exde) Stopping Plug

Brand: Eaton Corporation
Request Information
Favorite

Redapt PD-U Series of Dome Head Stopping Plugs provide a method of blanking off unused entries in hazardous area approved equipment whilst ensuring the integrity and Ex approval of the installation is maintained.
Features
  • International Ex approvals
  • IP66, IP68, CSA Enclosure Type (NEMA) 4X, 6P
  • Available in brass, stainless steel, mild steel and Aluminum
  • Various threadforms available
    • Benefits:
  • Provides method of filling unused entries in equipment
  • Maintains Ex certification
  • Maintains IP integrity

    • Specifications

    Brand

    Approvals & Certifications

    • ATEX: I M2, II 2 GD Ex D I/IIC Mb Gb, Ex E I/IIC Mb Gb, Ex Tb IIIC Db, IP6X, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31, Sira 00-ATEX-1094X
    • CE 0518
    • CSA: Ex De IIC IP66/67/68, Class I, Division 1 & 2, Grade A, B, C, D, Class II, Groups E, F, G, Class III, Enclosure Typical 4X / 6P, C22.2 No. 30-M1986 (R2012), CAN/CSA 60079-0-11, CAN/CSA 60079-1-11, CAN/CSA 60079-7-12, CAN/CSA 60079-31:12, UL1203-5th
    • Ex
    • GOST: ExdeIU, ExdeIICU, IP66/67/68, TR RU C-GB.GB06.B.00106
    • IECEx: Ex D I/IIC, Mb, Gb, Ex E I/IIC, Mb, Gb, Ex Tb IIIC Db, IP6X, IEC 60079-0, IEC 60079-1, IEC 60079-31, IEC 60079-7, SIR 12.0016X

    Environmental Protection

    • IP66
    • IP67
    • IP68
    • NEMA 4X
    • NEMA 6P

    Materials of Construction

    • 316 Stainless Steel
    • Aluminum
    • Brass CZ121
    • Mild Steel
    • Plating: Electroless Nickel
    • Plating: Zinc

    Metric Connection

    • M16 Female
    • M16 Male
    • M20 Female
    • M20 Male
    • M25 Female
    • M25 Male
    • M32 Female
    • M32 Male
    • M40 Female
    • M40 Male
    • M50 Female
    • M50 Male
    • M63 Female
    • M63 Male
    • M75 Female
    • M75 Male

    O-Ring Material

    • EPDM: -30° to 125° C (-22° to 257° F)
    • Fluorosilicone: -50° to 150° C (-58° to 302° F)
    • Neoprene: -20° to 100° C (-4° to 212° F)
    • Nitrile: -20° to 80° C (-4° to 176° F)
    • Silicone: -30° to 180° C (-22° to 356° F)
    • Viton: -5° to 180° C (23° to 356° F)

    Temperature Range

    • -50° to 180° C (-58° to 356° F)
