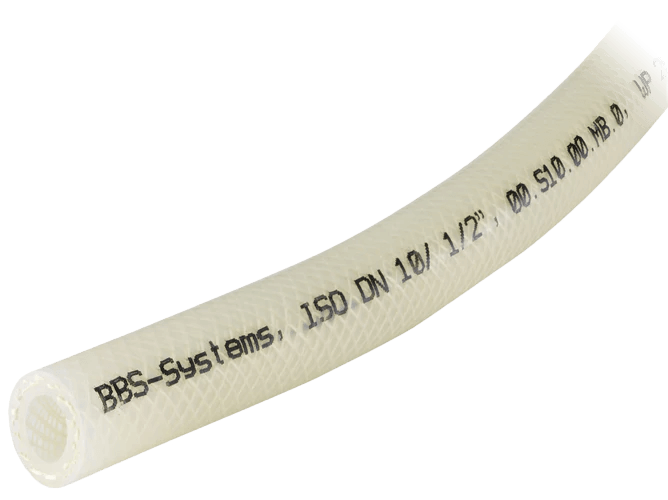

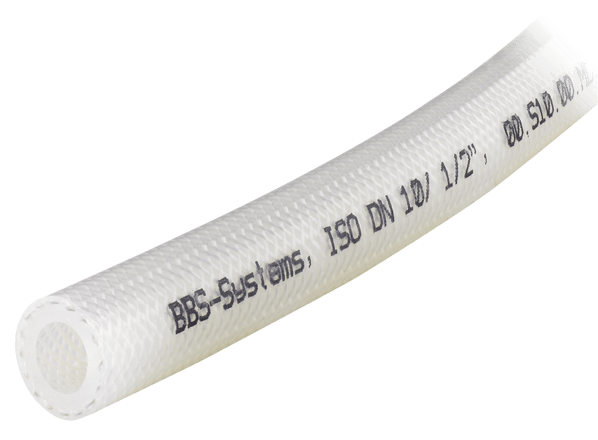

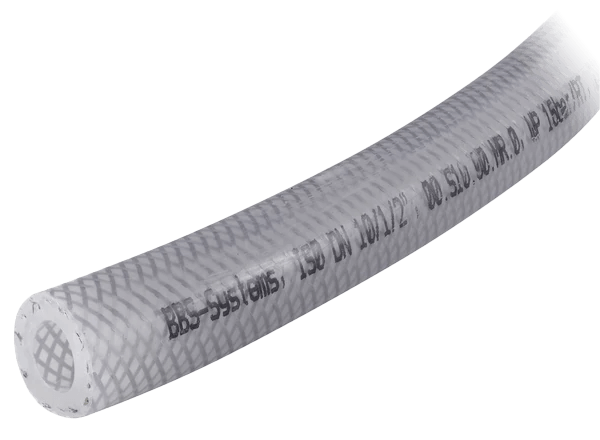

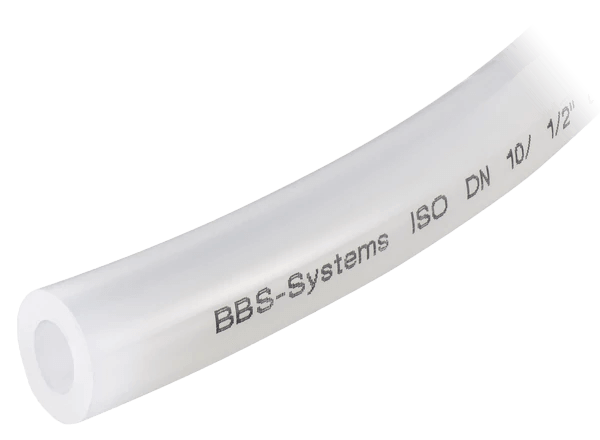

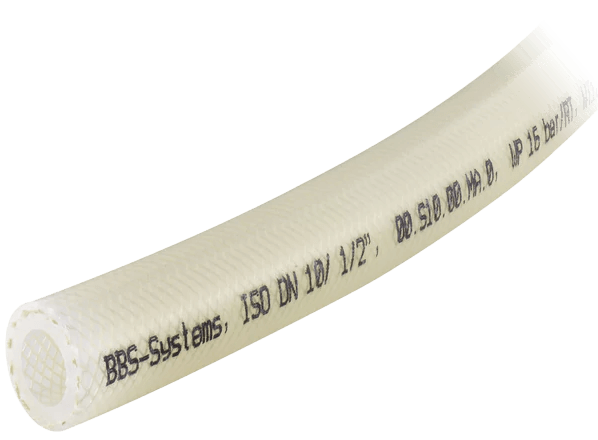

BBS-04 Platinum Cured Silicone Hose
Brand: Burkert Fluid Control Systems
The hose is made from platinum cured silicone and meets FDA requirements and has USP VI approval. The production is based on exceptional quality standards that enable the use of the hose in combination with the type BBS-4S reusable hose connections and is available in all standard sizes required in hygienic processing. The simplicity of the reusable connection system means all types of connection can be used and hence offers total unlimited flexibility in the field whilst supporting truly cost effective maintenance.
Features- Fully traceable materials
- Free from peroxide
- Suitable for CIP and SIP
- No axisymmetric contraction of the union to the hose
Specifications
Applications
- Biotechnology
- Chemical Industry
- Cosmetics
- Dairy Industry
- Food
- Pharmaceutical
Approvals & Certifications
- BFR
- E.P. 3.1.9
- Inspection Certificate 3.1
- Pressure Test
- USP Class IV
Approvals & Certifications
- FDA
Burst Pressure
- psi: 174 to 464.1 (kPa: 1,200 to 3,200, bar: 12 to 32) Minimum - Typical HI
- psi: 174 to 522.1 (kPa: 1,200 to 3,600, bar: 12 to 36) Minimum - Typical HJ
- psi: 174 to 652.7 (kPa: 1,200 to 4,500, bar: 12 to 45) Minimum - Typical HL
- psi: 29.01 to 58.02 (kPa: 200 to 400, bar: 2 to 4) Minimum - Typical HH
- psi: 290.1 to 696.2 (kPa: 2,000 to 4,800, bar: 20 to 48) Minimum - Typical HK
Diameter
- Inner: 0.19 to 0.5" (5 to 12.7 mm) - Typical HH
- Inner: 0.19 to 1.26" (5 to 32 mm) - Typical HI
- Inner: 0.39 to 1.7" (10 to 45 mm) - Typical HL
- Inner: 0.39 to 2.16" (10 to 55 mm) - Typical HJ
- Inner: 0.5 to 2.16" (12.7 to 55 mm) - Typical HK
Enclosure, Body Material
- Platinum Cured Silicone
Hose Connection
- 1" Hose
- 1/2" Hose
- 1/4" Hose
- 1-1/2" Hose
- 1-1/4" Hose
- 2" Hose
- 3/4" Hose
- 3/8" Hose
Length
- Roll Length: 32.8 to 82.02 feet (10 to 25 meters) - Typical HK, HL
- Roll Length: 32.81 to 164 feet (10 to 50 meters) - Typical HI, HJ
- Roll Length: 82.02 to 164 feet (25 to 50 meters) - Typical HH
Materials of Construction
- Aramide Reinforced - Typical HJ, Double Aramide Reinforced - Typical HK
- Glass Silk Reinforced - Typical HI
- Stainless Steel Reinforced - Typical HL
Media
- Gases
- Liquids
Operating Pressure
- psi: 116 to 362.6 (kPa: 800 to 2,500, bar: 8 to 25), Maximum
- psi: 36.26 to 145 (kPa: 250 to 1,000, bar: 2.5 to 10), Maximum
- psi: 36.26 to 159.5 (kPa: 250 to 1,100, bar: 2.5 to 11), Maximum
- psi: 43.51 to 145 (kPa: 300 to 1,000, bar: 3 to 10), Maximum
- psi: 58.02 to 232.1 (kPa: 400 to 1,600, bar: 4 to 16), Maximum
- psi: 72.5 to 232 (kPa: 500 to 1,600, bar: 5 to 16), Maximum
Size
- BS-OD: 1/4" to 2" (6.35 to 51 mm)
- DIN: 0.157" to 1.969" (4 to 50 mm)
- ISO: 0.315" to 1.969" (8 to 50 mm)
Temperature Range
- Material Temperature: 160° C (320° F), Maximum
Tolerance
- Roll Length: ± 10%
Wetted Materials
- 316L Stainless Steel, 1.4435
