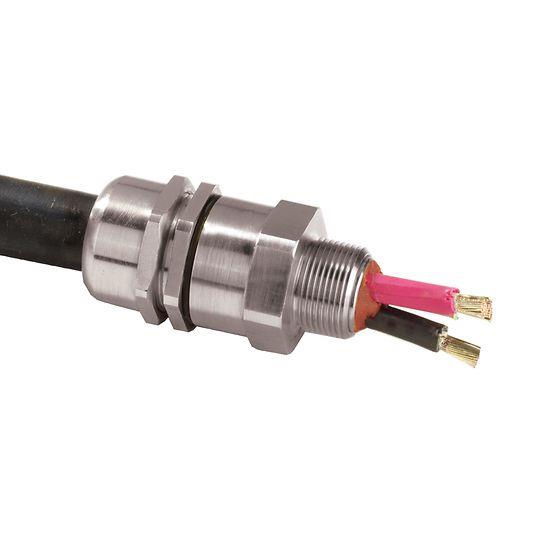

Emerson Appleton Cable Connector, PXSS2K
Images are representations only.

Appleton™ PXSS2K Connectors Flame Proof Compound Barrier Cable Connector

Brand: Appleton
Request Information

Appleton™ PXSS2K Series Compound Barrier Type Cable Connectors are flameproof Class I cable connectors suitable for unarmored, extra hard usage, tray (TC) and shipboard cables. It provides an environmental seal on the cable jacket and an explosionproof compound barrier seal around the cable inner cores.
Features
  • The connector is UL Listed for NPT or Metric entry threads.

  • Continuous operating temperature: -60 °C to +85 °C (-76 °F to +185 °F).

  • Sealing technique: displacement seal concept.

  • Sealing area(s): inner compound barrier and outer sheath.

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1, Ex D IIC, Ex E IIC, Ex NR II, Ex TD, IP66, IP67, IP68

    Cable Gland Accessories

    • Shroud, Locknut, Earth Tag, Entry Thread Seal, Serrated Washers, Adaptors & Reducers

    Compound Material

    • Epoxy Putty

    Gland Material

    • Brass Fully Nickel-Plated

    NEC/CEC Certifications & Compliances

    • Class I, Division 1, Groups C, D, Class I, Division 2, Groups A, B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, NEMA 4X, IP66, IP67, IP68

    Optional Material

    • Aluminum (replace Last Digit Suffix 5 with 1) or 316L Stainless Steel (replace Last Digit Suffix 5 with 4)

    Seal Material

    • SOLO LSF (low Smoke Fumes) ThermoPlastic Elastomer
