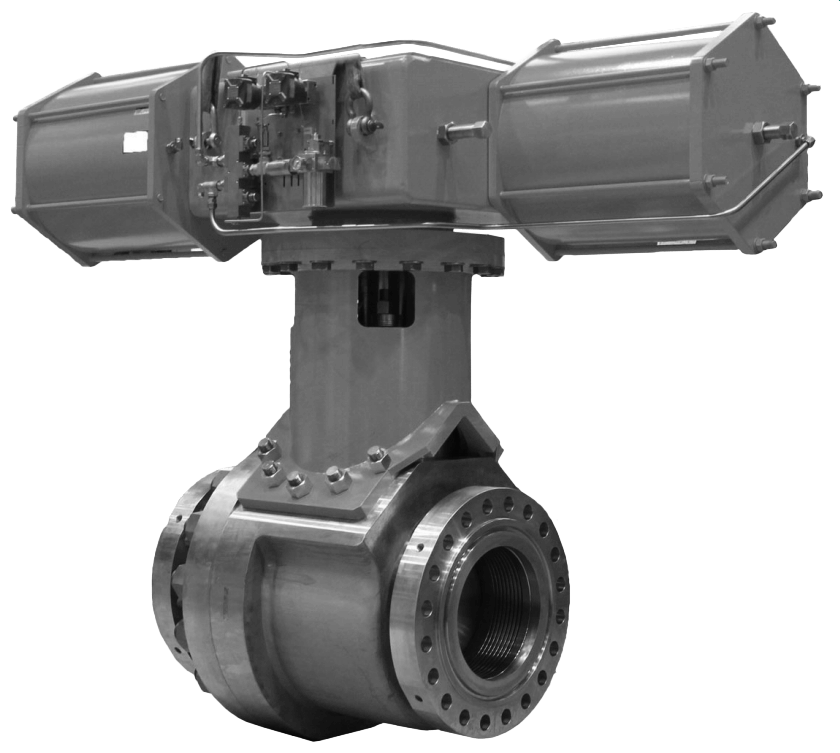

Neles Series XH Trunnion Mounted Ball Valve
Brand: MetsoMetso has designed this ball valve to mount on two large, low-friction trunnion bearings, with the spring-loaded seat in continuous contact with the ball surface.
The trunnion mounted XH valve can be used for high cycle shut-off and throttling service with high pressure differentials.
Specifications
Brand
Actuator Type
- Double-Acting
- Pneumatic
- Spring Return
Applications
- Catalyst Handling
- Chemical & Petrochemical
- Coal Gasification
- Control & Shut-Off
- Crude Oil
- Cryogenic to High Temperature Services
- Hydrocarbons
- Liquids, Gas & Steam
- LNG
- Natural Gas
- Oil & Gas Production
- Polymers
- Power Plants
Approvals & Certifications
- API
- Material Certificate EN 10204-3.1
Ball Material
- 410 Stainless Steel
- AISI 316 Stainless Steel - CF8M
Bearing Material
- Thrust, Trunnion: Cobalt Based Alloy
- Thrust: AISI 316L Stainless Steel
- Trunnion: AISI 316 Stainless Steel
- Trunnion: PTFE
Bonnet Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (LF2)
Cap Material
- Body: 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Body: Carbon Steel (LF2)
Enclosure Finish
- Carbide Coating
- Chrome-Carbide Coating (CrC-LF)
- Tungsten-Carbide Coating (WC-CO)
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (LF2)
Fill Material
- Graphite Filled Spiral Wound
Flange Size - 10" (DN250)
- 10" (DN250) - 900# (ASME)
- 10" (DN250) - PN 160
Flange Size - 12" (DN300)
- 12" (DN300) - 900# (ASME)
- 12" (DN300) - PN 160
Flange Size - 14" (DN350)
- 14" (DN350) - 900# (ASME)
- 14" (DN350) - PN 160
Flange Size - 16" (DN400)
- 16" (DN400) - 900# (ASME)
- 16" (DN400) - PN 160
Flange Size - 18" (DN450)
- 18" (DN450) - 900# (ASME)
- 18" (DN450) - PN 160
Flange Size - 2" (DN50)
- 2" (DN50) - 900# (ASME)
- 2" (DN50) - PN 160
Flange Size - 20" (DN500)
- 20" (DN500) - 900# (ASME)
- 20" (DN500) - PN 160
Flange Size - 24" (DN600)
- 24" (DN600) - 900# (ASME)
- 24" (DN600) - PN 160
Flange Size - 3" (DN80)
- 3" (DN80) - 900# (ASME)
- 3" (DN80) - PN 160
Flange Size - 4" (DN100)
- 4" (DN100) - 900# (ASME)
- 4" (DN100) - PN 160
Flange Size - 6" (DN150)
- 6" (DN150) - 900# (ASME)
- 6" (DN150) - PN 160
Flange Size - 8" (DN200)
- 8" (DN200) - 900# (ASME)
- 8" (DN200) - PN 160
Flange Type
- Raised Face (RF)
- Ring Joint Facing
Gasket Material
- Body, Bonnet: AISI 316L Stainless Steel
- Body, Bonnet: Graphite Filled Spiral Wound
- Body: Graphite
Gland Material
- AISI 316 Stainless Steel
Gland Packing Material
- Graphite
Materials of Construction
- Alloy Steel (ASTM A 320 Grade L7M)
- Bellow, Inconel® 718
- Bellow, Stainless Steel (F6NM)
- Compresssion Sleeve,Trunnion Plate : 316 Stainless Steel
- Insert: Polyamide
- Key: AISI 329 Stainless Steel (EN 10088 to 1.4460)
- Strip: PTFE
- Stud: 316 Stainless Steel (ASTM A 193 Grade B8M)
Mounting
- Actuator: ISO 5211
NACE & NIST
- NACE MR-0103
- NACE MR-01-75
Nut & Bolt Material
- Hexagon Nut, Bolting: 316 Stainless Steel (ASTM A 193 Grade 8M, B8M/8M)
- Hexagon Nut, Bolting: Carbon Steel (ASTM A 194 Grade 2HM, L7M/2HM)
O-Ring Material
- FKM
- Viton GF
Packing Material
- Graphite
Port
- Full
- Reduced
Ring Material
- Back-up: PTFE
- Packing: Graphite
- Retainer: Inconel® X-750
- Support: AISI 316 Stainless Steel
Seat / Seal Material
- Back Seal, Seat Seal: Graphite
- Ball Seat: 410 Stainless Steel
- Ball Seat: Cobalt Based Alloy
- Ball Seat: PTFE or Filled PTFE
- Ball Seat: Stainless Steel
- Ball Seat: Steel (CrC)
- Soft Seat: Polyamide
Service
- Oxygen Service
Shaft Material
- 630 Stainless Steel (17-4 PH)
- Stainless Steel (XM-19)
Spring Material
- Alloy 625 (UNS N06625)
- Disc Spring Set: AISI 6150 Stainless Steel (EN 10083 to 1.8159)
- Inconel® 625
Stem Material
- 630 Stainless Steel (17-4 PH)
- Stainless Steel (XM-19)
Temperature Range
- -75° to 425° C (-103° to 797° F)
