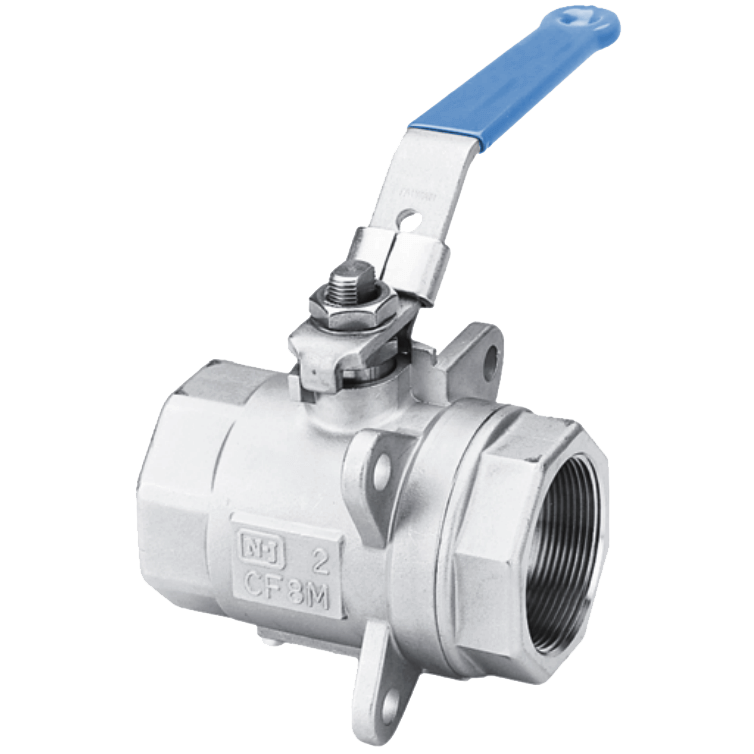

Jamesbury Series 5H Standard Port Ball Valve
Brand: MetsoThe Jamesbury Value-Line Series 5H ball valve is a screwed-end valve designed specifically for handling a wide range of fluids and gases at higher pressures.
Features- Robust engineering design
- Self relieving seat technology
- High quality
Specifications
Brand
Ball Material
- 316 Stainless Steel
Bearing Material
- Stem: Delrin® 100 AF
Cap Material
- Body: 316 Stainless Steel
- Body: Carbon Steel
Direct Mount
- Yes
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
Flow Rate
- 6 to 111 Cv
Handle Assembly Material
- Handle: 304 Stainless Steel
- Handle: Carbon Steel
Materials of Construction
- Shakeproof Washer: 304 Stainless Steel
- Shakeproof Washer: Carbon Steel
Media
- Water
Nut & Bolt Material
- Stem Nut: 304 Stainless Steel
Operating Pressure
- psi: 3,000 (kPa: 20,600, bar: 206) - 1-1/4" to 2" Valve Size
- psi: 4,500 (kPa: 31,000, bar: 310) - 1/4" to 1" Valve Size
Port
- Standard
Pressure Drop
- psi: 1 (kPa: 6.9, bar: 0.69)
Ring Material
- Compression: 304 Stainless Steel
Seat / Seal Material
- Body Seal, Stem Seal: PTFE
- Seat: Acetal Homopolymer
- Secondary Stem Seal: Graphite
Stem Material
- 630 Stainless Steel (17-4 PH)
Temperature Range
- -29° to 38° C (-20° to 100° F)
Valve Size
- 1/4" to 2" (8 to 50 mm)
Valve Type
- Manual
