Emerson Appleton AUTO-LOC Cord Reel, 8600 Series
Images are representations only.

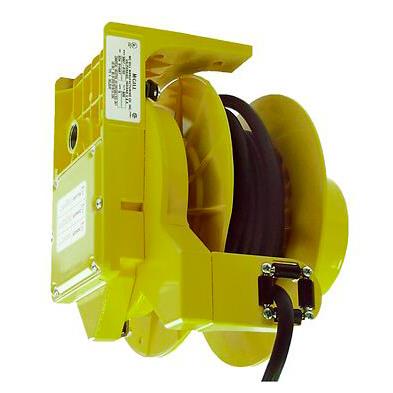

McGill™ 8600 Series AUTO-LOC Cord Reels

Brand: Appleton
Request Information
Favorite

8600 Series AUTO-LOC Cord Reels are ideal for hoists, electric tools, and moving equipment in rugged industrial applications. They feature a powder coated cast aluminum diecast construction in a weather-tight and dust-tight NEMA 4 housing. These cord reels are available with a selection of cable lengths. The cable ratchet can be disabled to accommodate hoists and other applications that require constant cable tension. Handlamp and cord only models are available.
Features
  • Weather-tight, dust-tight, corrosion resistant construction for heavy-duty industrial applications.

  • Ideal for hoists, electric tools, and moving equipment.

  • Sufficient spring tension to provide no more than 10% sag when cable is stretched horizontally.

  • Fully adjustable four roller cable guide to minimize cable wear.

  • Long life, self-contained mainspring.

  • Furnished with black SO cable with 3 and 4 conductors.

  • Models available with and without handlamp.

  • Removable ratchet for application flexibility.

  • 30 Amp, 600 V modular collector ring designed for long service life.

  • 330° pivot bases available.

  • 1” NPT line entry in junction box.

    • Specifications

    Brand

    Approvals & Certifications

    • UL Listed for Ordinary Locations. CSA Listed for Ordinary Locations. NEMA 4

    Cable Length

    • 25, 30, 35, 45 or 50

    Materials & Finishes

    • Reels are Constructed of Die Cast Aluminum with Yellow Polyester Powder Coat. Black SO Cable

    Mounting Type

    • Can be either Ceiling or Wall Mounted

    Number of Conductors

    • 3 or 4-Conductors

    Rating

    • Based on SO Cord Typical: 7 Amp, 600 Vac 9 Amp, 600 Vac 11 Amp, 600 Vac 13 Amp, 600 Vac 14 Amp, 600 Vac 18 Amp, 600 Vac
