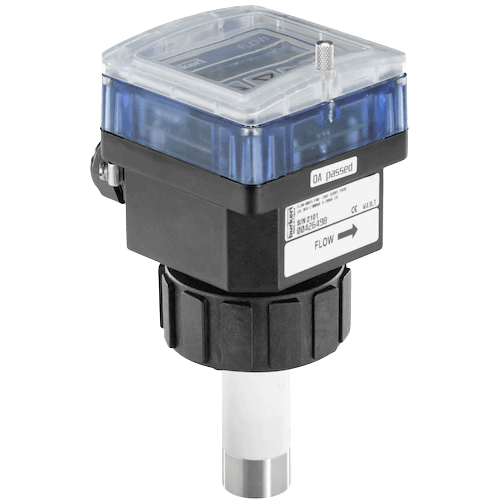

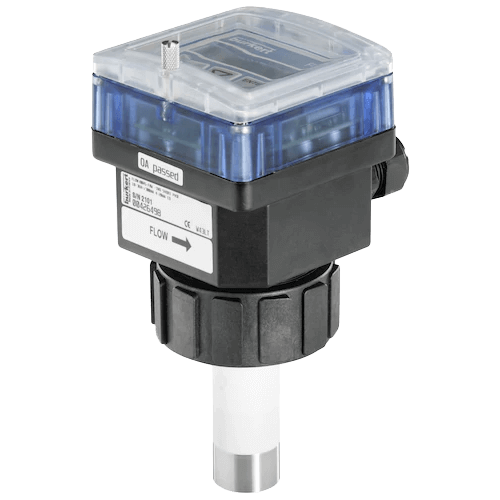

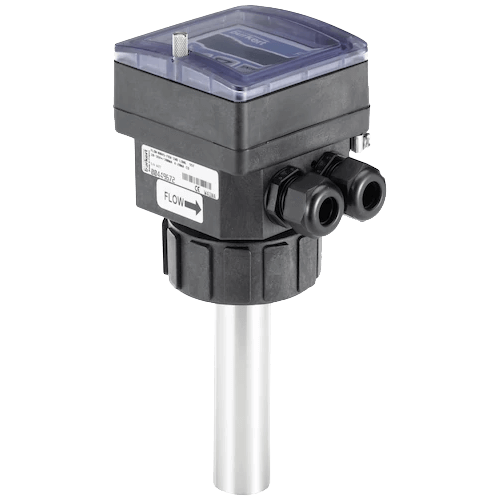

8045 Electromagnetic Flow Transmitter
Brand: Burkert Fluid Control Systems
The Magflowmeter 8045 has been designed for pipes with diameters ranging from 1/4" to 16" and liquids having a conductivity >20 µS/cm. The transmitter has a large display, a keyboard and provides 4-20 mA, relay and pulse outputs. The version with a stainless steel sensor has been designed for applications with high pressures 230 psi and high temperatures (up to 230° F).
Features- Sensor in solid state technology
- Shows both flow rate and volume
- Simulation: All outputs signals provided without the need for real flow
- Clean in process (CIP)
- FDA approved
Specifications
Accuracy
- Standard K-factor: ± 4% of Measured Value (0.033 to 32.8 feet/sec)
- Teach-In, Manually Works Calibration: ≤ ± 2% of Measured Value (0.033 to 32.8 feet/sec)
Applications
- Flow Control of Drinking Water (FDA Approval)
- Food Processing Industry: Monitoring of the Cleaning Cycles (FDA Approval)
- Irrigation
- Laundries: Measurement & Control of the Water Consumption
- Swimming Pools: Pump Protection & Flow Control
- Wastewater Treatment
Approvals & Certifications
- CE
- EMC 89/336/EC, EN 50081-1, 50082-2
- FDA
- LVD 73/23/EC
Approvals & Certifications
- Security: EN 61010-2
Conductivity
- 20 µS/cm Minimum
Consumption
- Current Consumption: 300 mA - Maximum
Cover Material
- PVDF Sensor Version: Polycarbonate (PC), Glass Fiber Reinforced
- Stainless Steel Sensor Version: Polyphthalamide (PPA), Glass Fiber Reinforced
Diameter
- Pipe: 1/4" to 16" (DN06 to DN400)
Electrical Connectors
- Cable Gland M20 x 1.5
Enclosure, Body Material
- PVDF Sensor Version: Polycarbonate (PC), Glass Fiber Reinforced
- Stainless Steel Sensor Version: Polyphthalamide (PPA), Glass Fiber Reinforced
Environmental Protection
- IP65
Flow Rate
- 20,000 gpm (50,000 L/minute, 5,000 m³/hour)
Gasket Material
- EPDM
- FKM
Humidity
- < 80% Relative Humidity, Non-Condensing
Indication
- LEDs Indicating the Relay Status
Linearity
- ± (1% of Measured Value + 0.1% of Full Scale)
Load Resistance
- 1,000 ohms at 24 V, Maximum
- 1,300 ohms at 30 V, Maximum
- 700 ohms at 18 V, Maximum
Materials of Construction
- Front Panel Foil: Polyester
- Protection Lid: Polysulfone (PSU)
Measuring Range
- 0.33 to 32.8 feet/sec (0.1 to 10 m/sec)
Operating Temperature
- -10° to 60° C (14° to 140° F)
Output
- Pulse, Current: 4-20 mA
- Pulse: 0-36 Vdc
- Pulse: 100 mA - Maximum
Output Format
- Pulse Output: Open Collector (NPN & PNP Transistor)
Pipe Size
- 1/4" to 16"
Power
- Relay (Cutting Power): 750 VA, Maximum
Pressure Range
- Fluid Pressure - bar: 0 to 15.86
- Fluid Pressure - kPa: 0 to 1,586
- Fluid Pressure - psi: 0 to 230
Process Temperature
- PVDF Sensor Version: 0° to 80° C (32° to 176° F)
- Stainless Steel Sensor Version: -25° to 110° C (-13° to 230° F)
Relay Output
- 3 A at 250 Vac / 30 Vdc (Resistive Load)
- 4-20 mA
Repeatability
- 0.25% of Measured Value
Ring Material
- Earth Ring (PVDF Sensor Version): 316L Stainless Steel (DIN1.4404)
Seat / Seal Material
- Seal (Standard on Version with PVDF Sensor): FKM
- Seal (Standard on Version with Stainless Steel Sensor): EPDM
Sensor, Probe Material
- Sensor: Brass
- Sensor: Polypropylene (PP)
- Sensor: PVC
- Sensor: Stainless Steel
Shock
- EN 60068-2-27
Storage Temperature
- -20° to 60° C (-4° to 140° F)
Supply Voltage
- 18-36 Vdc, Regulated (3-Wires)
Switch Type
- NPN & PNP Transistor
Temperature Range
- -17.7° to 110° C (0° to 230° F)
Vibration
- EN 60068-2-6
Wetted Materials
- Electrode Holder (Stainless Steel Sensor Version): PEEK
- Sensor Armature, Electrodes: 316L Stainless Steel (DIN1.4404)
- Sensor Armature: PVDF
