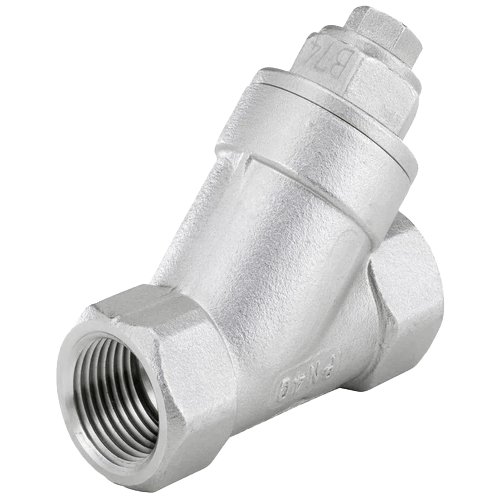

Burkert Strainer, TFU001
Images are representations only.

TFU001 Strainer

Brand: Burkert Fluid Control Systems
Request Information
Favorite

Burkert Strainer, TFU001 Burkert Strainer, TFU001 Burkert Strainer, TFU001
The dirt trap prevents malfunctions and extends the service life of downstream valves
Features
  • Brass and stainless steel body
  • Filter insert stainless steel
  • Prevents malfunctions due to contaminated media

View Details

Specifications

Brand

Enclosure, Body Material

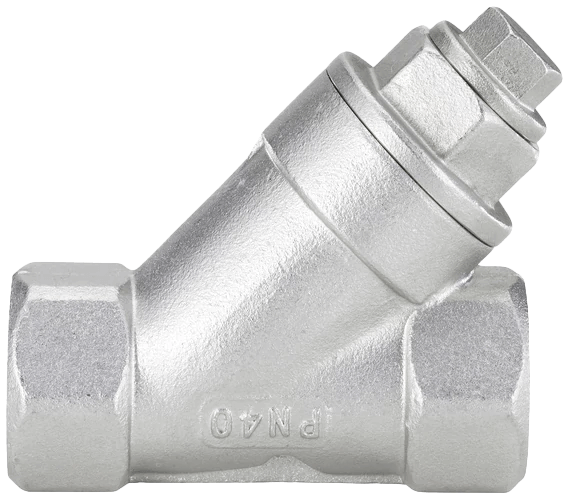

  • AISI 316 Stainless Steel, 1.4408

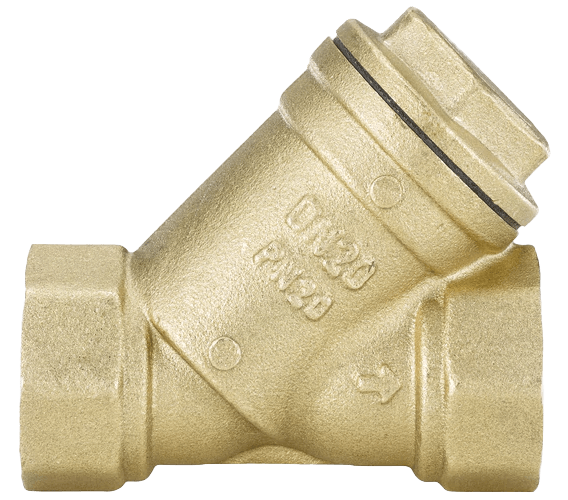

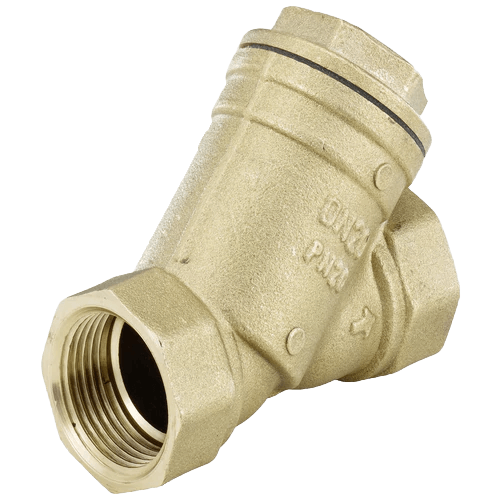

  • Brass (CW 617N)

Flow Rate

  • 3.05 to 25.37 Kv

Materials of Construction

  • Filter Material (Sieve): AISI 303 Stainless Steel, 1.4305
  • Filter Material (Sieve): AISI 316 Stainless Steel, 1.4401

Media

  • Air
  • Liquids
  • Neutral Gases

Nominal Pressure

  • psig: 145 (kPa: 1,000, bar: 10) at 20° C (68° F) - Brass Body
  • psig: 580.2 (kPa: 4,000, bar: 40) - Stainless Steel Body

Orifice Size

  • 0.39" to 1.96" (10 to 50 mm)

Pipe Connection

  • 1" Pipe (DN 25)
  • 1/2" Pipe (DN 15)
  • 1/4" Pipe (DN 8)
  • 1-1/2" Pipe (DN 40)
  • 1-1/4" Pipe (DN 32)
  • 2" Pipe (DN 50)
  • 3/4" Pipe (DN 20)
  • 3/8" Pipe (DN 10)

Process Temperature

  • -10° to 100° C (14° to 212° F) - Brass Body
  • -10° to 200° C (15° to 392° F) - Stainless Steel Body

Seat / Seal Material

  • Seal: Aramid Fibre with a Nitrile Rubber Binder (C-4400) - Brass Body
  • Seal: PTFE - Stainless Steel Body
