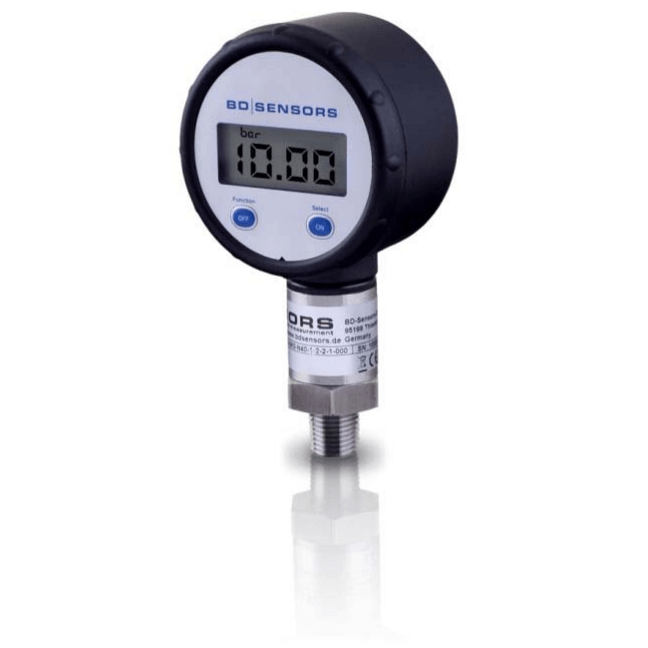

DM17 Digital Pressure Gauge
Brand: BD SensorsThe compact digital pressure gauge DM10 is battery-powered and has an adjustable housing; it is thus extremely suitable for mobile pressure monitoring. The 4.5-digit LCD indicates the battery status, the measurement value as well as the unit, this enables a fast and precise reading. It is possible to switch between the most common units (bar, psi, Pa, MPa). Additional functions as auto-zero, minimum / maximum values and an automatic switching-off complete the DM10 profile.
Specifications
Brand
Approvals & Certifications
- CE
- EMC: Emission & Immunity According to EN 61326, 2014/30/EU
- PED: 2014/68/EU (Module A)
- REACH
- RoHS
- TÜV NORD
- UL (C,US)
BSP Connection
- G 1/2" Male (EN 837)
- G 1/4" Male (DIN 3852)
Diaphragm Material
- 630 Stainless Steel (1.4542)
Enclosure, Body Material
- 304 Stainless Steel, 1.4301
- PA 6.6
Environmental Protection
- IP65
NPT Connection
- 1/4" NPT Male
Pressure Range
- bar: 0 to 600
- kPa: 0 to 60,000
- psi: 0 to 8,700
