Emerson Appleton Multiple Socket Outlet, MRE Series
Images are representations only.

Appleton™ MRE Series 16 and 32 Amp Multiple Socket Outlets

Brand: Appleton

Emerson Appleton Multiple Socket Outlet, MRE Series Emerson Appleton Multiple Socket Outlet, MRE Series Emerson Appleton Multiple Socket Outlet, MRE Series

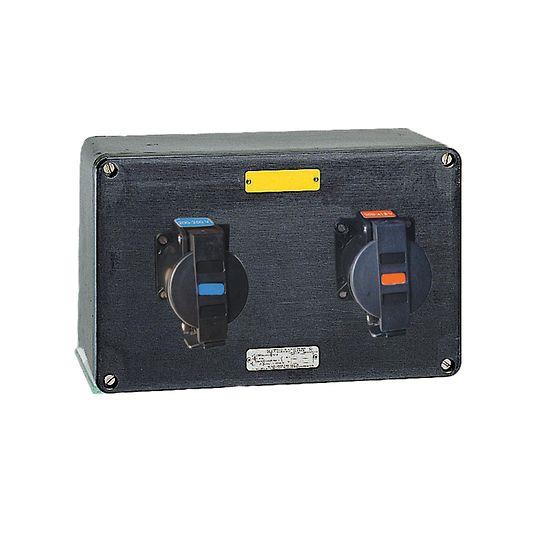

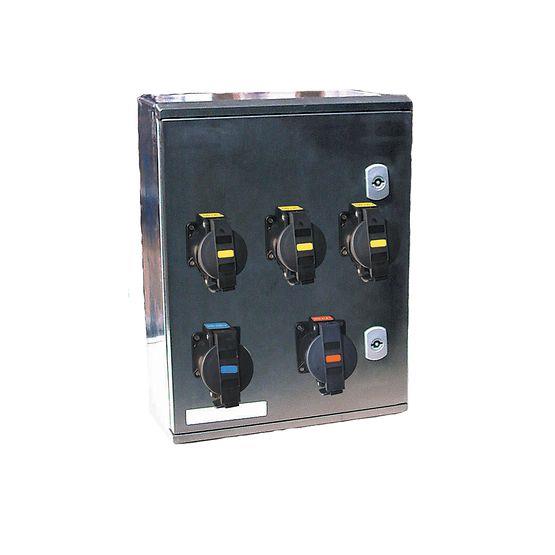

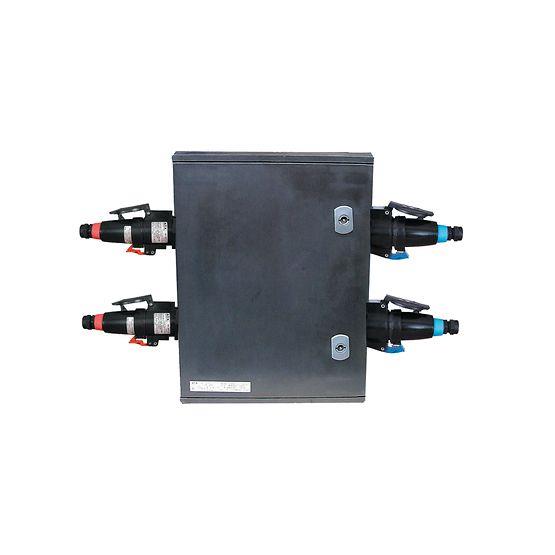

MRE Series 16 and 32 Amp Multiple Socket Outlets are available as a stationary or portable panel. These outlets provide multiple sockets for powering portable or stationary equipment in corrosive and hazardous locations. The MRE features include a switch that allows total disconnection of power when the plug is removed, a flameproof chamber for containing the connection/disconnection of each phase, and short circuit protection.
Features
  • Plug and socket assembly is equipped with a patented silver plated linear switch which allows a total disconnection of power when plug is removed.

  • The high voltage contact separation is in a flameproof chamber.

  • The automatic electrical disconnection of each phase is contained in a second flameproof chamber.

  • Short circuit protection is 20 kA, while normal reference is 10 kA.

  • Different voltages are color coded for easy identification.

  • The sockets are keyed to accept only ATX plugs (other plugs cannot be inserted).

  • ATX plugs can be used in non-hazardous sockets.

  • Operating temperature of -40 °C to +55 °C (-40 °F to +131 °F).

    • Specifications

    Brand

    Area Classification

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66 - IK10

    Hertz

    • 50 or 60 Hz

    Materials & Finishes

    • Housing is High Impact Resistance Fiberglass Reinforced Polyester or 316L Stainless Steel Polyamide Flush Sockets.

    Number of Poles

    • 2, 3

    Number of Wires

    • 3, 4, 5

    Operating Temperature

    • -40° to +55° C (-40° to +131° F)

    Voltage

    • 20/25 Vac, 100/130 Vac, 200/250 Vac or 380/415 Vac
