Appleton™ UPR Series 16 Amp Plugs and Sockets

Brand: Appleton

Emerson Appleton 16 Amp Plugs and Socket, UPR Series

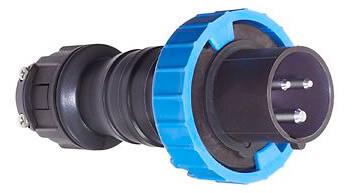

UPR Series 16 Amp Plugs and Sockets are compact, lightweight, strong and corrosion resistant. They are used with portable or stationery electrical equipment in corrosive atmospheres and in Zone 1 and 2 and 21 and 22 installations. The UPR is designed with a mechanical interlock to insure disengagement cannot occur while energized. The same plug used in hazardous locations can also be safely used with interlocking non-hazardous location receptacles.
Features
  • Plug and socket system is designed with a mechanical interlock to insure disengagement cannot occur while energized.

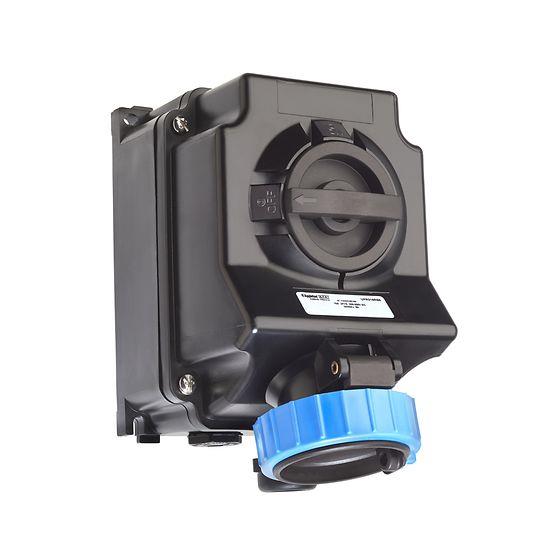

  • Large ON/OFF actuator on the receptacle gives clear, visible indication of the receptacle status for maximum hazardous location protection.

  • LV receptacle can be locked in 0 (Off) and 1 (On) positions.

  • Different voltages are color coded for easy identification.

  • The receptacles are keyed to accept UPR plugs of the proper voltage.

  • Receptacle explosionproof switch.

  • UPR plugs can be used in non-hazardous IEC 60309-2 sockets.

  • Operating temperature of -20 °C to +55 °C (-4 °F to +131 °F).

    • Specifications

    Brand

    Area Classification

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK09

    Hertz

    • 50/60 Hz

    Materials & Finishes

    • Polyamide Wall Socket & Plug.

    Number of Poles

    • 2, 3

    Number of Wires

    • 3, 4, 5

    Operating Temperature

    • -20° to +55° C (-4° to +131° F)

    Voltage

    • 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac or 600/690 Vac
