United Electric Terminal Head Style RTD Temperature Sensor, Style 65
Images are representations only.

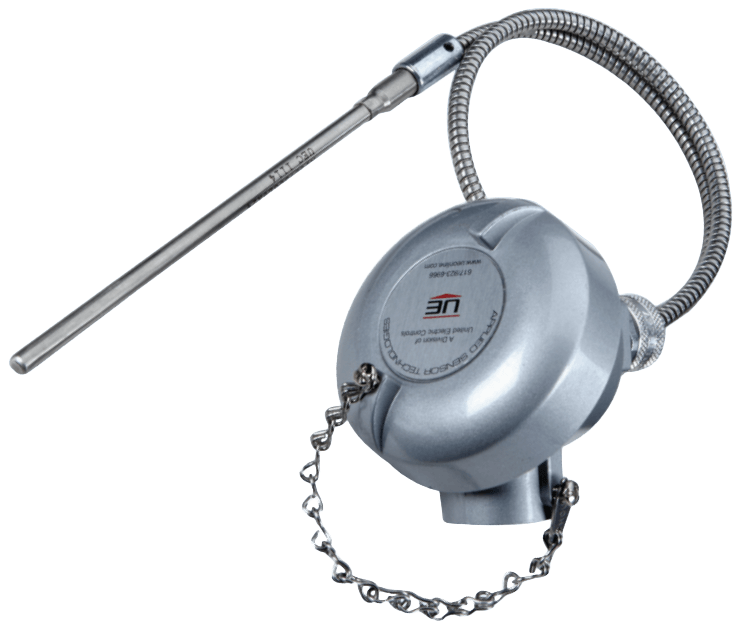

Style 65 Terminal Head Style RTD Temperature Sensor

Brand: United Electric Controls Ltd.
Request Information
Favorite

Designed for use in any pipe or surface temperature measuring application.
Features
  • NEMA 4 or 4X Terminal Head Option
  • Heat transfer pad with excellent temperature response
  • Rugged stainless steel sheaths for excellent mechanical protection
  • Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
  • Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles

View Details

Specifications

Brand

Accuracy

  • ± 0.01%
  • ± 0.06%
  • ± 0.12%

Approvals & Certifications

  • Certificate of Conformance

Cable Material

  • Armor Cable: Stainless Steel

Cable Type

  • Armored

Communication

  • HART

Conduit Connection

  • 1/2" NPT
  • 3/4" NPT

Diameter

  • Sheath: 0.125" to 0.375" (3.17 to 9.52 mm)

Electrical Connectors

  • Cable Gland
  • Terminal Block

Environmental Protection

  • IP66
  • NEMA 4
  • NEMA 4X

Input

  • 4-20 mA, 2-Wire Transmitter

Length

  • Sheath Length: 36" (914.4 mm), Maximum

Materials of Construction

  • Armor: PVC Coated
  • Armor: Teflon Coating
  • Chain, Compression Fitting & Ferrule: Stainless Steel
  • Compression Fitting Material & Ferrule: Brass
  • Insulated Conductor & Ferrule: Teflon
  • Sheath & Terminal Head: 316 Stainless Steel
  • Terminal Head: Cast Iron
  • Terminal Head: Cast or Epoxy Coated Aluminum
  • Terminal Head: Nylon
  • Terminal Head: Polypropylene (White or Black)

NACE & NIST

  • NIST Traceable Calibration

Name Plate, Tag Material

  • Stainless Steel

NPT Connection

  • 1/2" NPT Male
  • Compression Fitting: 1/4" NPT Male
  • Compression Fitting: 1/8" NPT Male

Operating Temperature - Sensor

  • -200° to 788° C (-328° to 1,450° F)

Output

  • 4-20 mA, 2-Wire Transmitter, Isolated or Non-Isolated Output

Pipe Size

  • Nominal Pipe Size for Weld Pad: 1" to 4" (25 to 101.6 mm)

RTD Type

  • Pt100

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sensor, Probe Material

  • Platinum

Sensor, Probe Type

  • RTD
