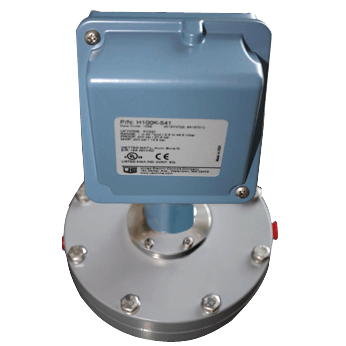

H100K Model 54X Pressure Switch
Brand: United Electric Controls Ltd.The H100K is a cost-effective pressure differential switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
Specifications
Adjustment Type
- Factory Set (Pre-Set)
- Field Adjustable
Ambient Temperature Range
- -40° to 71° C (-40° to 160° F)
Approvals & Certifications
- ATEX
- CE
- CSA
- GOST-R
- LVD
- PED
- UL
Deadband, Approximate
- bar: 0.00007 to 1.03
- kPa: 0.007 to 103.42
- psig: 0.001 to 15
Diaphragm Material
- Buna-N
- Viton
Electrical Connectors
- 1/2" NPT Female, Two 7/8" Diameter Knockouts
- 7/8" Hole to 1/2" NPT Female Watertight Conduit Fitting
Electrical Rating
- 1 A 125 Vac Resistive
- 10 A, 125 Vdc Resistive, Deadband & Minimum Set Point will Increase.
- 15 A 125/250 Vac Resistive
- 15 A 125/250/480 Vac Resistive, 24-30 Vdc, 2 A Resistive & 1 A Inductive, 125 Vdc, 0.5 A Resistive, 0.03 Inductive
- 15 A, 125/250 Vac Resistive, Temperatures up to 121° C (250° F)
- 15 A, 125/250/480 Vac Resistive, Latches on Rise Only
- 20 A, 125/250/480 Vac Resistive
- 5 A at 125/250 Vac Resistive
Enclosure, Body Material
- Die Cast Aluminum, Epoxy Coated
Environmental Protection
- IP66
- NEMA 4X / IP66
NPT Connection
- 1/8" NPT Female
O-Ring Material
- Buna-N
- Viton
Process Connection Material
- Epoxy Coated Aluminum
Set Point - Decreasing
- bar: 0.1 to 34.5
- Inches WC: 0.2 to 200
- kPa: 13.8 to 3,447
- mbar: 0.5 to 497.8
- psi: 2 to 500
Set Point - Increasing
- bar: 0.1 to 34.5
- Inches WC: 0.2 to 200
- kPa: 13.8 to 3,447
- mbar: 0.5 to 497.8
- psi: 2 to 500
Standard Features
- Tamper-Resistant Set Point "Lock"
Switch Type
- SPDT
System Pressure
- bar: -1 to 82.7
- kPa: 101.4 to 8,274
- psi: 14.7 to 1,200
