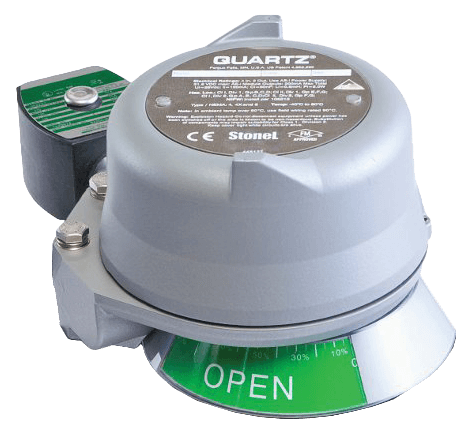

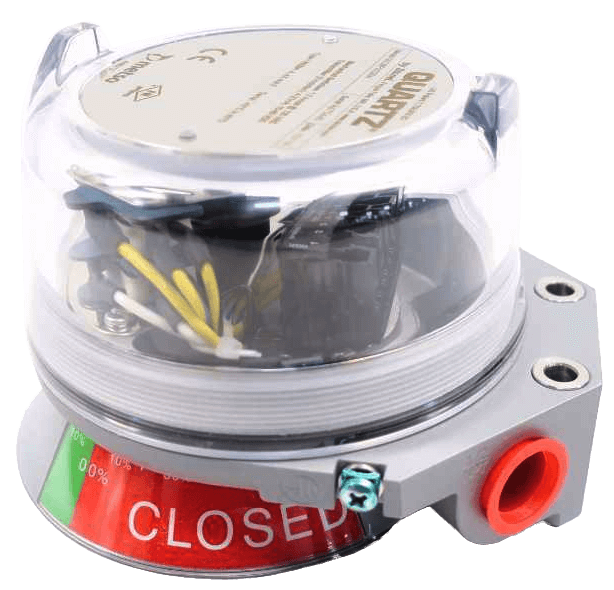

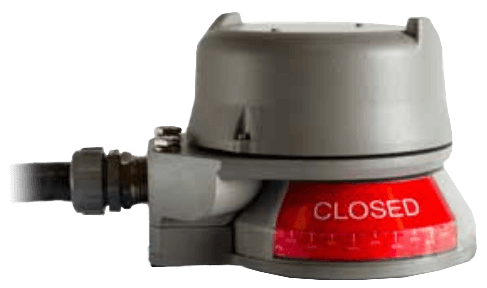

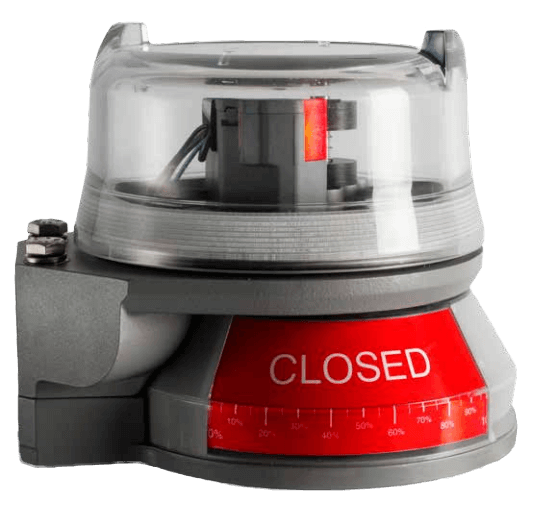

Quartz QX/QN/QG Series On/Off Valve Controller
Brand: Metso
The Quartz is available in explosionproof (QX), non-incendive, intrinsically safe (QN), and general-purpose (QG) versions.
The robust epoxy-coated anodized aluminum construction, and optional stainless steel version, makes this platform extremely durable and wellsuited for use in corrosive, heavy washdown environments.
Features- Enclosures optimized for environment
- Rapid enclosure access
- Faster wiring
- Wide variety of switching & communication
- Quick set cams are easy to adjust
- Dual shaft o-ring seals eliminate corrosion
Specifications
Brand
Approvals & Certifications
- CE
- CEC
- FM (US) - Division 1 & 2 Areas
- IEC
- NAMUR
- NEC
- VDI/VDE 3845
Bushing Material
- Drive: Bronze
Communication
- AS-Interface
- Baud Rate: 125, 250, 500 Kbps - DeviceNet (92)
- DeviceNet
- FOUNDATION Fieldbus - FOUNDATION Fieldbus VCT, Bus Powered (93)
Conduit Connection
- 1/2" NPT Female
- 3/4" NPT Female
- M20 Female
Configuration
- 4-20 mA Auxiliary Analog Input, 10-bit Resolution - DeviceNet (92)
- Auxiliary Discrete Input - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- Discrete Input (Open & Closed) - DeviceNet (92), FOUNDATION Fieldbus VCT, Bus Powered (93)
- Discrete Sensor Input - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- NAMUR Sensors (EN 60947-5-6, I.S) - NAMUR Sensor (45)
- Power Outputs (Solenoids) - DeviceNet (92), AS-Interface (96), AS-Interface VCT with Extended Addressing (97), FOUNDATION Fieldbus VCT, Bus Powered (93)
- SPST NO, Passive (Intrinsically Safe) - J Switch, P Switch, M Switch, S Switch
- Stainless Steel Solid State Sensor - Stainless Steel Switching Sensors (35)
Cover Material
- Clear: Lexan Polycarbonate
- Epoxy-Coated Anodized Marine Grade Aluminum
- Stainless Steel
Current
- 0.5 mA Minimum - Stainless Steel Switching Sensors (35)
- 1 A, Maximum
- 100 mA - Maximum
- 160 mA - Maximum
- Inrush: 0.1 A, Maximum
- Leakage: 0.15 mA DC, Maximum
- Leakage: 0.25 mA AC, Maximum
- Target Off I> 3 mA - NAMUR Sensor (45)
- Target on I< 1 mA - NAMUR Sensor (45)
Direct Mount
- Yes
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 0.1 A at 10-30 Vdc - J Switch, M Switch
- 0.1 A at 120 Vac - S Switch
- 0.1 A at 24 Vdc - S Switch
- 0.15 A at 125 Vac/30 Vdc - P Switch
- 0.2 A at 120 Vac - G Switch
- 0.3 A at 24 Vdc - G Switch
- 0.5 A at 125 Vdc - Silver Contacts (V Switch)
- 0.5 A at 30 Vdc - Gold Contacts (W Switch)
- 1 A at 125 Vac - Gold Contacts (W Switch)
- 10 A at 125/250 Vac - Silver Contacts (V Switch)
- 3 A at 240 V / 2-100 W, Maximum
- 4.5 A at 125/250 Vac - 14 Switch
- 4.5 A at 24-125 Vdc - 14 Switch
Enclosure, Body Material
- Epoxy-Coated Anodized Marine Grade Aluminum - QX
- Stainless Steel - QX
Environmental Protection
- Explosion-proof: Ex D, Zone 1 or Class I & II, Division 1
- Intrinsically Safe: Ex Ia, Zone 0 or Class I & II, Division 1
- IP66
- IP67
- NEMA 4
- NEMA 4X
- NEMA 6
- Non-Incendive: Class I & II, Division 2
Indication
- LED
Input
- Auxiliary: 24 Vdc at 2 mA (Self-Powered) - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
Load Resistance
- 700 ohms at 24 Vdc - Position Transmitter
Materials of Construction
- Contact (G Switch, M Switch, S Switch): Rhodium
- Contact (H Switch): Tungsten
- Contact (J Switch, P Switch): Ruthenium
- Fasterners, Couplings: Stainless Steel
- Indicator: Lexan Polycarbonate
Operation
- Normally Closed (Solid State) - Stainless Steel Switching Sensors (35), NAMUR Sensor (45)
- Normally Open (Solid State) - Stainless Steel Switching Sensors (35)
Output
- 2 mA at 6.5 Vdc Current Limited to 2 mA (Bus Powered) - FOUNDATION Fieldbus VCT, Bus Powered (93)
- 2 W at 24 Vdc - AS-Interface VCT with Extended Addressing (97)
- 21-26 Vdc - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- 24 Vdc (Input Voltage Ranging from 10-24 Vdc) - DeviceNet (92)
- 4 W at 24 Vdc (Output Combined) - DeviceNet (92), AS-Interface (96)
- 4-20 mA, 2-Wire - Position Transmitter
Pressure Cycles
- 5 Million
Seal Type
- Hermetically Sealed
Seat / Seal Material
- Elastomer Seal: Buna-N
- Elastomer Seal: EPDM
Shaft Material
- Drive: Stainless Steel
Supply Voltage
- 10-40 Vdc - Position Transmitter
Switch Type
- SPDT
- SPST
Temperature Range
- Mechanical Components, Dual Modules, Maximum
Valve Type
- Manual
- Solenoid Valve
Voltage
- 20-250 Vac - Stainless Steel Switching Sensors (35)
- 5-25 Vdc - NAMUR Sensor (45)
- 8-250 Vdc - Stainless Steel Switching Sensors (35)
Voltage Drop
- 0.1 V at 10 mA - Maximum
- 0.5 V at 100 mA - Maximum
- 3.5 V at 10 mA - Maximum
- 6.5 V at 10 mA - Maximum
- 6.5 V at 100 mA - Maximum
- 7.2 V at 100 mA - Maximum
