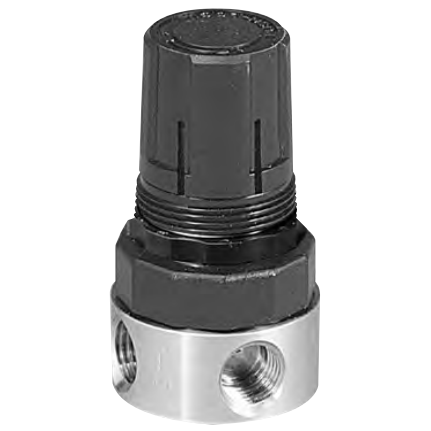

RA3 (Aluminum)/RB3 (Brass) Series Miniature Regulator
Brand: Wilkerson CorporationSpecifications
- Brass Body Construction Handles Water and Compressed Air Service
- Large Diaphragm to Valve Area Ratio for Precise Regulation and High Flow Capacity
- Spring Loaded Diaphragm
- High Flow: 1/4"-14 SCFM
- Panel Mount Nut Standard
- Two 1/8" Gauge Ports
Displaying prices & availability for Ohio, United States 43201 in USD. Change location.
Models matching criteria: 24
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Non-Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 2 to 125 psi (0.14 to 8.6 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/8"
- Model Type - Relieving
- Pressure Range - 1-25 psi (0.07 to 1.7 bar)
Out of Stock
- Series - Brass Body
- Port Size - 1/4"
- Model Type - Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
- Series - Aluminum Body
- Port Size - 1/4"
- Model Type - Non-Relieving
- Pressure Range - 1 to 60 psi (0.07 to 4.1 bar)
Out of Stock
Specifications
Flow Capacity
- 1/4": 14 SCFM (6.6 dm3/s)
Maximum Supply Pressure
- 300 PSIG (20.7 bar)
Operating Temperature
- 40° to 125° F (4.4° to 52° C)
Port Size
- NPT / BSPP-G: 1/8
- NPT / BSPP-G: 1/4
Weight
- 0.5lb. (0.23 kg)
